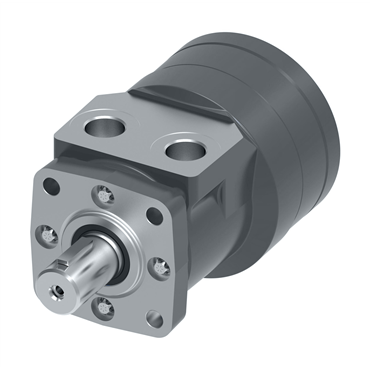

S Series Low Speed High Torque Geroler® Spool Motor

103-1005-012

S Series Low Speed High Torque Geroler® Spool Motor
Item #102092326
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 4 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
S Series Low Speed High Torque Geroler® Spool Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 4 Bolt Mount

description

  • Eaton's Low Speed, High Torque (LSHT) Geroler® motors are similar in design to the Geroter motor, but feature better low speed performance characteristics and higher overall efficiency.

applications

  • Agricultural augers, Harvesters, Seeders, Railroad maintenance equipment

features

  • Compact yet powerful
  • Extended bearing life
  • Increased shaft seal

options

  • Five mounting styles
  • Low-speed spool
  • Nine shaft options
  • Speed sensors
Case Drain None
Flow [Max] 15 gal/min
Flange Orientation Standard
Mounting Hole Size 3/8-16 UNC-2B
Port Type NPTF
Brake Type Hydraulic
Shaft Size & Type 1 in x 1/4 in Straight
Corrosion Resistant No
Pilot Diameter 1.75 in
Displacement 186 cm3/Rev
Output Shaft Type Straight
Pressure [Max] 1850 psi
RPM [Min] 304 rpm
Front Seal Kit If Available 9900101-000
Viscosity Recommendation 70 Saybold Universal Second
Material Cast Iron
Recommended System Working Temperature [Min] -30 °F
Inlet Pressure [Max] 2500 psi
Intermittent Pressure [Max] 329 bar
Motor Type Spool Valve
Splines 0
Torque 333 Nm
Seal Material Buna-N
Motor Element Gerotor
Rotation Standard Rotation
Maximum Speed @ Continuous Flow 304 rpm @ 15 gal/min
Port Location Side Port
Displacement (in³/rev) 11.4
Paint Primer Low Gloss Black
Output Torque at Rated PSI (inch/pounds) 333 in lb
Mount Type 4 Bolt
Paint/Packaging Low Gloss Black, Individual Box
Flow Rate 57 lpm
Seal Options Standard
Recommended System Working Temperature [Max] 180 °F
Bolt Circle Dia. 3 1/4 in
Design Code 12
Port Size & Location 1/2 in NPTF Side
Series S Series
Port Size 1/2-14
RPM [Max] 304 rpm
Duty Standard-Duty
Weight 16.35 LB
