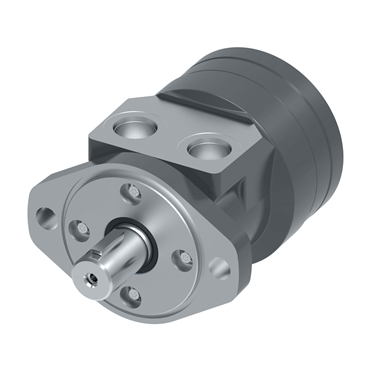

S Series Low Speed High Torque Geroler® Spool Motor

103-1538-012

S Series Low Speed High Torque Geroler® Spool Motor
Item #102092408
  • Spool Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
S Series Low Speed High Torque Geroler® Spool Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Spool Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount

description

  • Eaton's Low Speed, High Torque (LSHT) Geroler® motors are similar in design to the Geroter motor, but feature better low speed performance characteristics and higher overall efficiency.

applications

  • Agricultural augers, Food processing, Machine tools, Harvesters, Seeders

features

  • Compact yet powerful
  • Extended bearing life
  • Increased shaft seal

options

  • Five mounting styles
  • Low-speed spool
  • Nine shaft options
  • Speed sensors
Flange Orientation Standard
Material Cast Iron
Port Location Side Port
Maximum Speed @ Continuous Flow 472 rpm @ 15 gal/min
RPM [Max] 472 rpm
Splines 0
Corrosion Resistant No
Series S Series
Design Code 12
Displacement 120 cm3/Rev
Paint/Packaging Low Gloss Black, Individual Box
Recommended System Working Temperature [Max] 180 °F
Brake Type Hydraulic
Mount Type 2 Bolt
Port Size & Location SAE-10 Side
Displacement (in³/rev) 7.32
Inlet Pressure [Max] 2500 psi
Output Torque at Rated PSI (inch/pounds) 2098 in lb
Paint Primer Low Gloss Black
Output Shaft Type Straight
Recommended System Working Temperature [Min] -30 °F
Viscosity Recommendation 70 Saybold Universal Second
Motor Type Spool Valve
Rotation Standard Rotation
Flow Rate 57 lpm
Mounting Hole Size 0.54 in
Intermittent Pressure [Max] 236 bar
Case Drain None
Torque 237 Nm
Front Seal Kit If Available 9900101-000
Flow [Max] 15 gal/min
Duty Standard-Duty
Port Size 7/8-14
Motor Element Geroler
Pilot Diameter 3.25 in
Seal Options Standard
Pressure [Max] 2000 psi
Bolt Circle Dia. 4.187 in
Seal Material Buna-N
Shaft Size & Type 1 in x 1/4 in Straight
Port Type SAE O-Ring
RPM [Min] 472 rpm
Weight 15.0 LB
