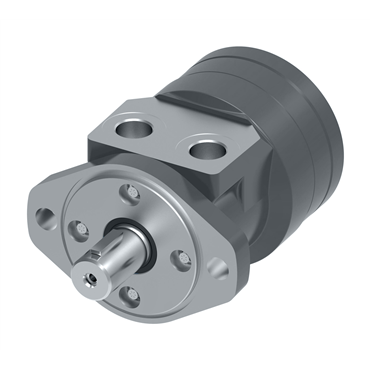

S Series Low Speed High Torque Geroler® Spool Motor

103-1542-012

S Series Low Speed High Torque Geroler® Spool Motor
Item #102091572
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 2 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
S Series Low Speed High Torque Geroler® Spool Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Spool Valve Motor
  • Cast Iron Material
  • 1/2-14 Prort Size
  • NPTF Port
  • 2 Bolt Mount

description

  • Eaton's Low Speed, High Torque (LSHT) Geroler® motors are similar in design to the Geroter motor, but feature better low speed performance characteristics and higher overall efficiency.

applications

  • Agricultural augers, Food processing, Machine tools, Harvesters, Seeders

features

  • Compact yet powerful
  • Extended bearing life
  • Increased shaft seal

options

  • Five mounting styles
  • Low-speed spool
  • Nine shaft options
  • Speed sensors
Material Cast Iron
Splines 0
Corrosion Resistant No
Brake Type Hydraulic
Bolt Circle Dia. 4.19 in
Port Location Side Port
Output Torque at Rated PSI (inch/pounds) 2347 in lb
Output Shaft Type Straight
Case Drain None
Pilot Diameter 3.25 in
Intermittent Pressure [Max] 271 bar
Inlet Pressure [Max] 2500 psi
Torque 265 Nm
Flow Rate 57 lpm
Motor Type Spool Valve
Front Seal Kit If Available 9900101-000
Motor Element Gerotor
RPM [Min] 394 rpm
Rotation Standard Rotation
Recommended System Working Temperature [Min] -30 °F
Paint/Packaging Low Gloss Black, Individual Box
Maximum Speed @ Continuous Flow 394 rpm @ 15 gal/min
Flange Orientation Standard
Design Code 12
Mount Type 2 Bolt
Port Size 1/2-14
Series S Series
Pressure [Max] 1900 psi
Shaft Size & Type 1 in x 1/4 in Straight
Seal Material Buna-N
Duty Standard-Duty
Recommended System Working Temperature [Max] 180 °F
RPM [Max] 394 rpm
Displacement 146 cm3/Rev
Flow [Max] 15 gal/min
Mounting Hole Size 0.54 in
Viscosity Recommendation 70 Saybold Universal Second
Seal Options Standard
Port Size & Location 1/2 in NPTF Side
Port Type NPTF
Displacement (in³/rev) 8.9
Paint Primer Low Gloss Black
Weight 15.0 LB
