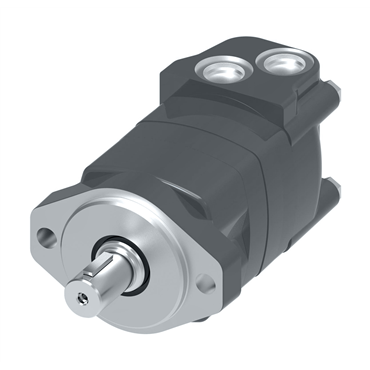

2000 Series Low Speed High Torque Geroler® Disc Motor

104-1001-006

2000 Series Low Speed High Torque Geroler® Disc Motor
Item #100152924
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
2000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount

applications

  • Swing motor, Brush Cutters & mowers, Harvesting equipment

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Eight shaft configurations
  • Port reliefs
  • Speed sensors
  • Oversized ports
  • Two speed
  • Manifold
RPM [Min] 908 rpm
Output Torque at Rated PSI (inch/pounds) 2080 in lb
Seal Options Standard
Brake Type Hydraulic
RPM [Max] 908 rpm
Intermittent Pressure [Max] 310 bar
Pressure [Max] 3000 psi
Splines 0
Rotation Standard Rotation
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port
Geroler Options Standard
Flow Rate 75 lpm
Port Code AA
Maximum Speed @ Continuous Flow 799 rpm @ 20 gal/min
Series 2000 Series
Mounting Type Code AC
Output Shaft Type Straight
Displacement (in³/rev) 4.9
Material Cast Iron
Port Size & Location SAE-10 Side
Design Code 6
Paint/Packaging Individual Box
Pilot Diameter 3.25 in
Recommended System Working Temperature [Max] 180 °F
Paint Code 0
Seal Material Buna-N
Mounting Holes 0.535 in
Special Features Hardware Code 00
Special Features Assembly Code 0
Bolt Circle Dia. 4.19 in
Recommended System Working Temperature [Min] -30 °F
Mounting Hole Size 0.535 in
Flange Orientation Standard
Shaft Size & Type 1 in x 1/4 in Straight
Port Size 7/8-14
Duty Standard-Duty
Flow [Max] 20 gal/min
Inlet Pressure [Max] 4500 psi
Case Drain Code 01
Output Shaft Code 01
Motor Type Disc Valve
Mount Type 2 Bolt
Front Seal Kit If Available 61258-000
Motor Element Geroler
Geroter/Geroler Options Standard
Displacement 80.6 cm3/Rev
Port Type SAE O-Ring
Shaft Type Straight
Viscosity Recommendation 70 Saybold Universal Second
Corrosion Resistant No
Torque 235 Nm
Port Location Side Port, Staggered
Accessories Code 00
Weight 22.85 LB
