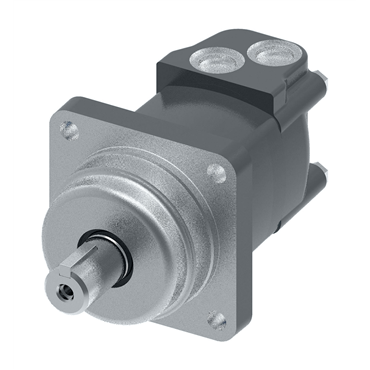

2000 Series Low Speed High Torque Geroler® Disc Motor

104-1025-006

2000 Series Low Speed High Torque Geroler® Disc Motor
Item #100152948
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
2000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount

applications

  • Swing motor, Brush Cutters & mowers, Harvesting equipment

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Eight shaft configurations
  • Port reliefs
  • Speed sensors
  • Oversized ports
  • Two speed
  • Manifold
Design Code 6
Seal Options Standard
Inlet Pressure [Max] 4500 psi
Seal Material Buna-N
Output Torque at Rated PSI (inch/pounds) 4027.09 in lb
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port
Brake Type Hydraulic
Mounting Holes 0.535 in
Motor Type Disc Valve
Port Size & Location SAE-10 Side
Flow Rate 75 lpm
Geroler Options Standard
Material Cast Iron
Intermittent Pressure [Max] 260 bar
Port Code AA
Series 2000 Series
Flow [Max] 20 gal/min
Torque 455 Nm
Flange Orientation Standard
Pressure [Max] 3000 psi
Shaft Type Straight
Corrosion Resistant No
Mounting Type Code AC
Special Features Hardware Code 00
Recommended System Working Temperature [Max] 180 °F
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Rotation Standard Rotation
Mount Type 2 Bolt
Accessories Code 00
Output Shaft Code 02
Displacement 158.1 cm3/Rev
Paint/Packaging Individual Box
RPM [Min] 477 rpm
Case Drain Code 01
Maximum Speed @ Continuous Flow 477 rpm @ 20 gal/min
Mounting Hole Size 0.535 in
Front Seal Kit If Available 61258-000
Special Features Assembly Code 0
Recommended System Working Temperature [Min] -30 °F
Paint Code 0
Bolt Circle Dia. 4.19 in
Port Location Side Port, Staggered
RPM [Max] 477 rpm
Splines 0
Geroter/Geroler Options Standard
Viscosity Recommendation 70 Saybold Universal Second
Duty Standard-Duty
Displacement (in³/rev) 9.7
Port Type SAE O-Ring
Pilot Diameter 3.25 in
Motor Element Geroler
Output Shaft Type Straight
Port Size 7/8-14
Weight 24.4 LB
