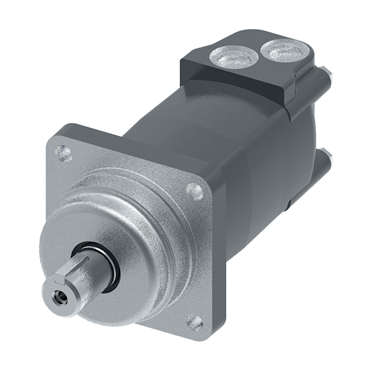

2000 Series Low Speed High Torque Geroler® Disc Motor

104-1228-006

2000 Series Low Speed High Torque Geroler® Disc Motor
Item #102146964
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
2000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 2 Bolt Mount

applications

  • Swing motor, Brush Cutters & mowers, Harvesting equipment

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Eight shaft configurations
  • Port reliefs
  • Speed sensors
  • Oversized ports
  • Two speed
  • Manifold
Intermittent Pressure [Max] 170 bar
Shaft Type Straight
Displacement (in³/rev) 24.03
Material Cast Iron
Port Size 7/8-14
Rotation Standard Rotation
Recommended System Working Temperature [Max] 180 °F
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port
Design Code 6
Flange Orientation Standard
Output Shaft Type Straight
Flow Rate 75 lpm
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Port Location Side Port, Staggered
Viscosity Recommendation 70 Saybold Universal Second
Geroler Options Standard
Splines 0
Paint Code 0
Duty Standard-Duty
Displacement 393.8 cm3/Rev
Port Code AA
Output Shaft Code 02
Special Features Assembly Code 0
Inlet Pressure [Max] 4500 psi
Mounting Type Code AC
Motor Type Disc Valve
Paint/Packaging Individual Box
Pilot Diameter 3.25 in
Port Type SAE O-Ring
Accessories Code 00
Mounting Hole Size 0.535 in
Recommended System Working Temperature [Min] -30 °F
Motor Element Geroler
Port Size & Location SAE-10 Side
Seal Options Standard
Mounting Holes 0.535 in
Maximum Speed @ Continuous Flow 191 rpm @ 20 gal/min
Series 2000 Series
RPM [Min] 191 rpm
Torque 775 Nm
Geroter/Geroler Options Standard
Case Drain Code 01
RPM [Max] 191 rpm
Mount Type 2 Bolt
Front Seal Kit If Available 61258-000
Brake Type Hydraulic
Corrosion Resistant No
Bolt Circle Dia. 4.19 in
Seal Material Buna-N
Flow [Max] 20 gal/min
Special Features Hardware Code 00
Pressure [Max] 2250 psi
Output Torque at Rated PSI (inch/pounds) 6860 in lb
Weight 28.995 LB
