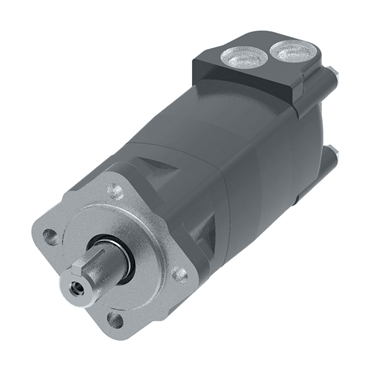

2000 Series Low Speed High Torque Geroler® Disc Motor

104-1253-006

2000 Series Low Speed High Torque Geroler® Disc Motor
Item #100153053
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
2000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 7/8-14 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount

applications

  • Swing motor, Brush Cutters & mowers, Harvesting equipment

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Eight shaft configurations
  • Port reliefs
  • Speed sensors
  • Oversized ports
  • Two speed
  • Manifold
Flow [Max] 20 gal/min
Port Code AA
Recommended System Working Temperature [Min] -30 °F
Mounting Holes 0.535 in
Rotation Standard Rotation
RPM [Min] 191 rpm
Torque 775 Nm
RPM [Max] 191 rpm
Mounting Hole Size 0.535 in
Port Location Side Port, Staggered
Maximum Speed @ Continuous Flow 191 rpm @ 20 gal/min
Pilot Diameter 3.25 in
Series 2000 Series
Paint/Packaging Individual Box
Duty Standard-Duty
Geroler Options Standard
Paint Code 0
Viscosity Recommendation 70 Saybold Universal Second
Seal Options Standard
Displacement 393.8 cm3/Rev
Motor Type Disc Valve
Geroter/Geroler Options Standard
Mounting Type Code AH
Output Shaft Code 02
Bolt Circle Dia. 4.19 in
Displacement (in³/rev) 24.03
Mount Type 4 Bolt
Case Drain Code 01
Flow Rate 75 lpm
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Flange Orientation Standard
Port Type SAE O-Ring
Motor Element Geroler
Pressure [Max] 2250 psi
Special Features Hardware Code 00
Output Shaft Type Straight
Recommended System Working Temperature [Max] 180 °F
Seal Material Buna-N
Intermittent Pressure [Max] 170 bar
Material Cast Iron
Shaft Type Straight
Brake Type Hydraulic
Port Size & Location SAE-10 Side
Accessories Code 00
Corrosion Resistant No
Design Code 6
Splines 0
Front Seal Kit If Available 61258-000
Output Torque at Rated PSI (inch/pounds) 6860 in lb
Special Features Assembly Code 0
Port Size 7/8-14
Inlet Pressure [Max] 4500 psi
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port
Weight 31.0 LB
