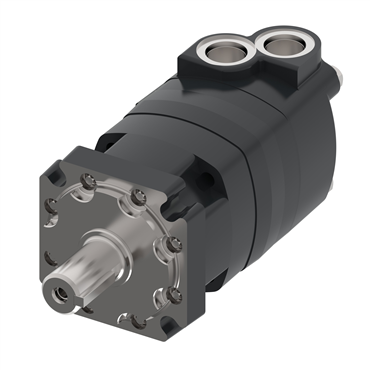

4000 Series Low Speed High Torque Geroler® Disc Motor

109-1101-006

4000 Series Low Speed High Torque Geroler® Disc Motor
Item #100153124
  • Disc Valve Motor
  • Cast Iron Material
  • 1 1/16-12 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
4000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 1 1/16-12 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount

description

  • Eaton’s 4000 series Char-Lynn® product line motor can deliver more than 40 hp in a small package. The disc valve design has the highest performance available.

applications

  • Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Five shaft configurations
  • Four mounting styles
Recommended System Working Temperature [Min] -30 °F
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port With Check Valve
Paint/Packaging Individual Box
Design Code 6
Mount Type 4 Bolt
Bolt Circle Dia. 5 in
Pressure [Max] 3000 psi
Port Type SAE O-Ring
Port Size & Location SAE-12 Side
Flange Orientation Standard
RPM [Min] 722 rpm
Seal Options Standard
Motor Type Disc Valve
Recommended System Working Temperature [Max] 180 °F
Viscosity Recommendation 70 Saybold Universal Second
Mounting Type Code B
Mounting Holes 0.58 in
Corrosion Resistant No
Geroter/Geroler Options Standard
Port Code B
Series 4000 Series
Rotation Standard Rotation
Geroler Options Standard
Pilot Diameter 4 in
Output Shaft Type Straight
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Port Size 1 1/16-12
Flow Rate 95 lpm
Special Features Hardware Code 00
Maximum Speed @ Continuous Flow 722 rpm @ 25 gal/min
Motor Element Geroler
Output Shaft Code 01
Port Location Side Port
Output Torque at Rated PSI (inch/pounds) 3319 in lb
Inlet Pressure [Max] 4500 psi
Paint Code 0
Seal Material Buna-N
Material Cast Iron
Flow [Max] 25 gal/min
Torque 375 Nm
Intermittent Pressure [Max] 310 bar
Splines 0
Mounting Hole Size 0.58 in
Brake Type Hydraulic
Displacement 130.3 cm3/Rev
Displacement (in³/rev) 8
Shaft Type Straight
RPM [Max] 722 rpm
Duty Standard-Duty
Weight 37.15 LB
