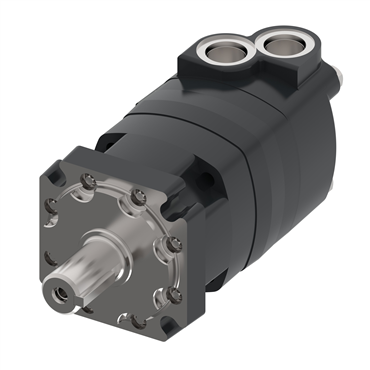

4000 Series Low Speed High Torque Geroler® Disc Motor

109-1104-006

4000 Series Low Speed High Torque Geroler® Disc Motor
Item #100153127
  • Disc Valve Motor
  • Cast Iron Material
  • 1 1/16-12 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount
  • Straight Output Shaft
+ Show More + Show Less
4000 Series Low Speed High Torque Geroler® Disc Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Disc Valve Motor
  • Cast Iron Material
  • 1 1/16-12 Prort Size
  • SAE O-Ring Port
  • 4 Bolt Mount

description

  • Eaton’s 4000 series Char-Lynn® product line motor can deliver more than 40 hp in a small package. The disc valve design has the highest performance available.

applications

  • Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

options

  • Five shaft configurations
  • Four mounting styles
Flange Orientation Standard
Mounting Hole Size 0.58 in
Port Type SAE O-Ring
Rotation Standard Rotation
Material Cast Iron
Flow Rate 95 lpm
Geroler Options Standard
Pressure [Max] 3000 psi
Special Features Hardware Code 00
Brake Type Hydraulic
Inlet Pressure [Max] 4500 psi
Port Location Side Port
Pilot Diameter 4 in
Viscosity Recommendation 70 Saybold Universal Second
Series 4000 Series
Splines 0
Paint/Packaging Individual Box
Output Shaft Type Straight
Seal Material Buna-N
Design Code 6
Output Torque at Rated PSI (inch/pounds) 6240 in lb
Paint Code 0
Duty Standard-Duty
Port Size 1 1/16-12
Intermittent Pressure [Max] 310 bar
Mounting Type Code B
Geroter/Geroler Options Standard
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Torque 705 Nm
Recommended System Working Temperature [Min] -30 °F
Port Code B
Motor Element Geroler
Mount Type 4 Bolt
Displacement 246.3 cm3/Rev
Output Shaft Code 01
Port Size & Location SAE-12 Side
Seal Options Standard
Bolt Circle Dia. 5 in
Flow [Max] 25 gal/min
Motor Type Disc Valve
RPM [Max] 383 rpm
Maximum Speed @ Continuous Flow 383 rpm @ 25 gal/min
Mounting Holes 0.58 in
RPM [Min] 383 rpm
Displacement (in³/rev) 15.03
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port With Check Valve
Recommended System Working Temperature [Max] 180 °F
Shaft Type Straight
Corrosion Resistant No
Weight 57.0 LB
