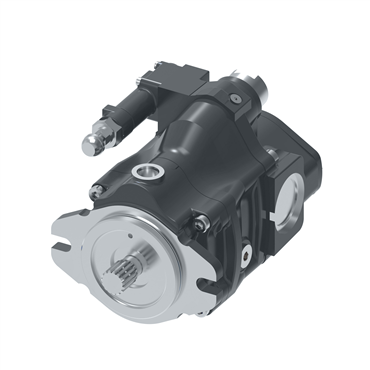

- Model PVM018ER01AE01AAA21000000A0A
- CW Rotation
- 5/8 in Keyed Shaft
- SAE A, 2 Bolt with 3 1/4 in Pilot
- 8.2 gal/min @ 1800 rpm
description
- Open circuit, axial piston designs that feature a saddle-type yoke with steel-backed polymer bearings. The stiff yoke reduces deflection and allows even loading of bearings, improving life. A single control piston reduces loading on the yoke, resulting in reduced pump size that allows installation in tighter locations. Capable of operating with many types of hydraulic fluids used in industrial and mobile systems. High water content and phosphate ester fluids can be accommodated, in addition to the typical petroleum-based and synthetic fluids.
applications
- Metal shears
- Material conveyors
- Automotive transfer lines
- Process industry machines
- Flight simulators
- Entertainment rides
- Tube forming and bending
- Blow molding machines
- Metal die casters
features
- Compact design
- Inlet and outlet gauge ports and adjustable maximum displacement stops
- Low 4% pressure ripple
- Long pump life
- Quiet pump operation
- Reduced maintenance
- Design promotes leak-free system
| Paint | Standard Blue Paint |
| Shaft Description | SAE A |
| Auxiliary Mounting Pad | Single Pump, Non-Thru-Drive |
| Pump Type | Open Circuit Axial |
| Flow Compensator Setting | None |
| Operating Pressure [Max] | 5000 psi |
| Manufacturer Part No. | PVM018ER01AE01AAA21000000A0A |
| Shaft Dia. | 0.625 in |
| Family Name | PVM Series Industrial Piston Pump |
| Seal Material | Buna-N |
| Flow @ RPM | 4.5 gpm @ 1000 rpm, 5.5 gpm @ 1200 rpm, 7 gpm @ 1500 rpm, 8.2 gpm @ 1800 rpm |
| Shaft Type | Straight Keyed |
| Displacement (in³/rev) | 1.1 |
| Control Type | Pressure Compensator |
| Rotation | Right |
| Special Features | Adjustable Maximum Displacement Stop & Single Shaft Seal |
| GPM @ Speed | 8.2 gpm @ 1750 rpm |
| RPM [Max] | 1800 rpm |
| Pressure Compensator Setting | 210 Bar |
| Mounting Flange | SAE A, 2-Bolt |
| Series | PVM018 |
| Key | 0.15625 in |
| Bolt Circle Dia. | 4 3/16 in |
| Valve Plate | Electric Motor Speeds |
| Pilot Diameter | 3.25 in |
| Inlet Port | 1.25 in SAE 4-Bolt (Code 61) |
| Outlet Port | 0.75 in SAE 4-Bolt Flange (Code 61) |
| Shaft Length | 0.94 in |
| Spline Description | N/A |
| HP @ 1,800 rpm [Max] | 22 hp |
| Port Location | End |
| Origin | Axial Piston Pumps |
| Port Type | Tube Ports |
| Model No. | PVM018ER01AE01AAA21000000A0A |
| Weight | 33.0 LB |
