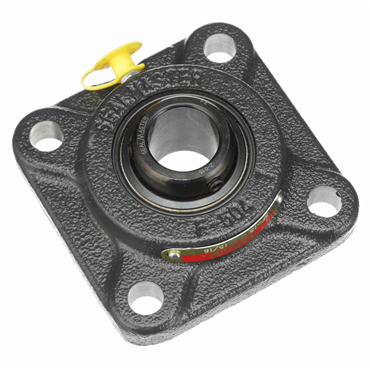

Cast Iron Greasable 4-Bolt Flange Unit

F4BSC015

Cast Iron Greasable 4-Bolt Flange Unit
Item #100733499
  • 0.938 in Shaft Diameter
  • 4-Bolt Flange
  • Solid Housing Construction
  • Cast Iron Housing Material
Cast Iron Greasable 4-Bolt Flange Unit
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.938 in Shaft Diameter
  • 4-Bolt Flange
  • Solid Housing Construction
  • Cast Iron Housing Material

applications

  • Air handling
  • Unit handling
  • Food and beverage
  • Forest products
  • Paper
  • Automotive
  • Chemical
  • Packaging and processing

features

  • Inner and outer rings are precision hardened and honed for wear resistance and quiet operation
  • DualGuard sealing system includes a mechanically retained, land riding, single lip contact seal plus a patented rubberized flinger for enhanced protection against contaminants
  • Ball cage is made of heat stabilized nylon with fiberglass reinforcement, which allows higher operating temperatures and greater flexibility with added strength
  • Anti-rotation pin makes insert replacement easier with no need to replace grease fittings or location pins
  • 65° setscrew spacing offers an optimum balance between locking force and inner ring stress
  • Grade 10 balls for quieter operation and less vibration
Locking Device Setscrew Locking Collar
Housing Material Cast Iron
Bearing Design Non-Expansion
Misalignment Range ±2°
Expansion Capability Fixed
Bearing Insert INSSC015
Bore Length 1.34 in
Lubrication Grease
Style 4-Bolt Flange
Shaft Dia. 0.9375 in
Speed [Max] 4500 rpm
Bolt Hole Spacing 2 3/4 in
Suitable For Washdown No
Sensor Ready Adapter Required
Bearing Type Ball Bearing
Housing Length 3 3/4 in
Seal Type Contact Seals
Inch/Metric Inch
Insert Material Steel
Grease Name Unirex N2
Bolt Size 7/16 in
Suitable for High Temperature No
Length Through Bore 1.188 in
Flange Type 4-Bolt Flange
End Type Open End
Flange Thickness 1/2 in
Bolt Hole Size 7/16 in
Bolt to Bolt [Max] 2.75 in
Static Load Capacity 1769 lbf
Housing Construction One Piece
Mounted Unit Duty Normal-Duty
Standoff Housing No
Outer Ring Size 205
Overall Width 1 23/64 in
Greasable Yes
Dynamic Load Capacity 3146 lbf
Bolt Diameter 0.438 in
Bolt to Bolt [Min] 2.75 in
Housing Height 3 3/4 in
Ball Bearing Series 205 Series
Duty Normal-Duty
Weight 1.8 LB
EAN or UPC 782475114283
