F4BSCM207

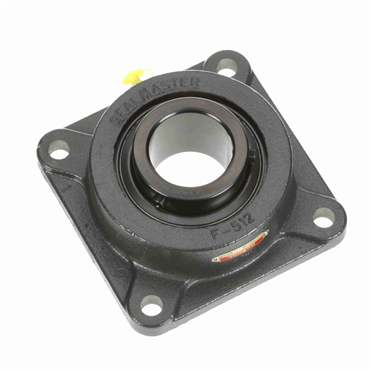

Cast Iron Greasable 4-Bolt Flange Unit

Item #100000075
each
    Shipment Options

Alternate Products

Product details

  • 2.438 in Shaft Diameter
  • 4-Bolt Flange
  • Solid Housing Construction
  • Cast Iron Housing Material

applications

  • Air handling
  • Unit handling
  • Food and beverage
  • Forest products
  • Paper
  • Automotive
  • Chemical
  • Packaging and processing

features

  • Inner and outer rings are precision hardened and honed for wear resistance and quiet operation
  • DualGuard sealing system includes a mechanically retained, land riding, single lip contact seal plus a patented rubberized flinger for enhanced protection against contaminants
  • Ball cage is made of heat stabilized nylon with fiberglass reinforcement, which allows higher operating temperatures and greater flexibility with added strength
  • Anti-rotation pin makes insert replacement easier with no need to replace grease fittings or location pins
  • 65° setscrew spacing offers an optimum balance between locking force and inner ring stress
  • Open and closed safety covers available

Specifications

Shaft Dia. 2.438 in
Greasable Yes
Sensor Ready Adapter Required
Expansion Capability Fixed
Speed [Max] 2000 rpm
Bolt Size 5/8 in
Suitable For Washdown No
Style 4-Bolt Flange
Locking Device Setscrew
Housing Length 7 3/8 in
Standoff Housing No
Length Through Bore 2.234 in
Housing Height 7 3/8 in
Seal Type Contact Seals
Bearing Insert INSSCM207
Mounted Unit Duty Medium-Duty
Housing Construction Solid
Overall Width 2 3/4 in
Bolt Diameter 0.625 in
Dynamic Load Capacity 13995 lbf
End Type Open End
Bolt Hole Spacing 5 7/8 in
Misalignment Range ±2°
Bolt to Bolt [Max] 5.88 in
Bolt to Bolt [Min] 5.88 in
Grease Name Unirex N2
Outer Ring Size 214
Bolt Hole Size 5/8 in
Bore Length 2.54 in
Suitable for High Temperature No
Insert Material Steel
Bearing Type Ball
Static Load Capacity 9838 lbf
Housing Width 2 3/16 in
Flange Type 4-Bolt Flange
Duty Medium-Duty
Lubrication Grease
Inch/Metric Inch
Ball Bearing Series 214 Series
Flange Thickness 11/16 in
Bearing Design Non-Expansion
Housing Material Cast Iron
Weight 13.9 LB
EAN or UPC 782475116027
