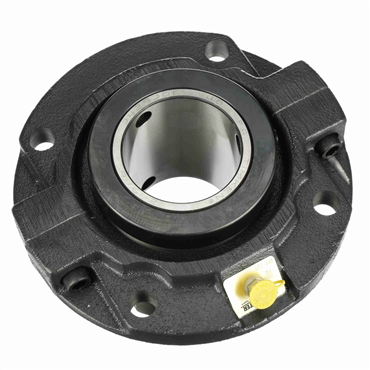

Type E-XTRA™ 4-Bolt Cast Iron Piloted Flange Unit

FCE107R

Type E-XTRA™ 4-Bolt Cast Iron Piloted Flange Unit
Item #100738802
  • 1.438 in Shaft Diameter
  • Piloted Flange
  • Solid Housing Construction
  • Cast Iron Housing Material
Type E-XTRA™ 4-Bolt Cast Iron Piloted Flange Unit
    Shipment Options
  • 1.438 in Shaft Diameter
  • Piloted Flange
  • Solid Housing Construction
  • Cast Iron Housing Material

description

  • Dodge Type E, industry-trusted and proven since 1943, is manufactured in Marion, NC. The US-manufactured, high-capacity mounted tapered roller bearing offers longer bearing life at a reliable and lower TCO.

applications

  • Aggregate
  • Conveyors
  • Load out
  • Cement

features

  • Shaft ready, factory lubed, sealed, and adjusted
  • Simple set screw mount with dual 65° Spring-lok collars
  • Case-hardened rollers and races
  • Dual XTS nitrile rubber, triple-lip seals
  • Housings optimized for (optional) Dodge OPTIFY™ sensor for bluetooth-enabled condition monitoring
  • (Optional) Field adaptable “XTS Plus”, E-Tect seal kit for longer life in wet or very dusty environments
End Type Open End
Bolt Diameter 0.375 in
Style 4-Bolt Piloted Flange
Grease Name MobilGrease XHP222
Shaft Dia. 1.438 in
Flange Type Piloted Flange
Locking Device Dual Spring-lok Collar
Length Through Bore 3 in
Seal Type Contact Seals
Bearing Type Tapered Roller
Bearing Design Non-Expansion
Flange Thickness 1/2 in
Inch/Metric Inch
Housing Height 5 1/4 in
Mounted Unit Duty Heavy-Duty
Insert Material Steel
Housing Dimensional Standard Type E
Expansion Capability Fixed
Greasable Yes
Static Load Capacity 26000 lbf
Bore Length 3 in
Bolt Hole Size 3/8 in
Speed [Max] 3820 rpm
Lubrication Grease
Overall Width 3 in
Housing Width 2 15/32 in
Housing Length 5 1/4 in
Housing Material Cast Iron
Pilot Depth 0.88 in
Bolt Circle Dia. 4.38 in
Bolt Size 3/8 in
Pilot Diameter 3.625 in
Housing Construction Solid
Duty Heavy-Duty
Weight 6.21 LB
EAN or UPC 782475697205
