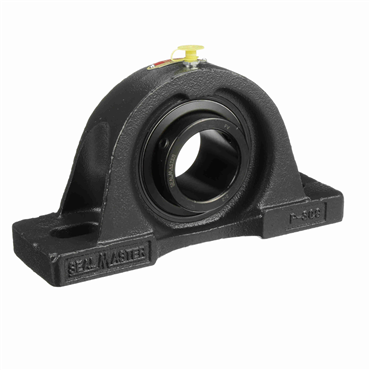

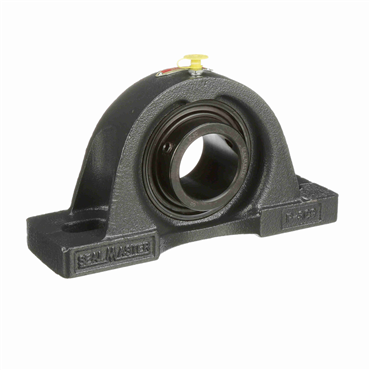

SCM Series Medium-Duty 2-Bolt Pillow Block

P2BSCM200

SCM Series Medium-Duty 2-Bolt Pillow Block
Item #100733480
  • 2 Bolts
  • Cast Iron Housing Material
  • Solid Housing Construction
  • Steel Insert Material
SCM Series Medium-Duty 2-Bolt Pillow Block
    Shipment Options
  • 2 Bolts
  • Cast Iron Housing Material
  • Solid Housing Construction
  • Steel Insert Material

applications

  • Air handling
  • Unit handling
  • Food and beverage
  • Forest products
  • Paper
  • Automotive
  • Chemical
  • Packaging and processing

features

  • Medium-duty utilizes larger rings and housing compared to standard-duty
  • Inner and outer rings are precision hardened and honed for wear resistance and quiet operation
  • DualGuard sealing system includes a mechanically retained, land riding, single lip contact seal plus a patented rubberized flinger for enhanced protection against contaminants
  • Ball cage is made of heat stabilized nylon with fiberglass reinforcement, which allows higher operating temperatures and greater flexibility with added strength
  • Anti-rotation pin makes insert replacement easier with no need to replace grease fittings or location pins
  • 65° set screw spacing offers an optimum balance between locking force and inner ring stress
  • Open and closed safety covers available
Static Load Capacity 6588 lbf
Expansion Capability Fixed
Bolt Diameter 0.625 in
Mounted Unit Duty Medium-Duty
Bolt Holes 2
Bore Length 2.22 in
Bolt to Bolt [Min] 6.38 in
Bolt Hole Length 1 7/32 in
Locking Device Setscrew Locking Inner Ring
Base to Center Height 2.5 in
Bearing Type Ball
Base Width 2 5/16 in
Seal Type Contact Seals
Housing Height 4 31/32 in
Inch/Metric Inch
No. of Bolts 2
End Type Open End
Dynamic Load Capacity 9755 lbf
Bolt to Bolt [Max] 7.44 in
Bolt Hole Spacing 6 29/32 in
Speed [Max] 2500 rpm
Take-Up Frame Size LD-40, TS-300
Shaft Dia. 2 in
Suitable For Washdown No
Series P2BSCM
Outer Ring Size 211
Pillow Block Type Thru-Bolt
Base Height 7/8 in
Ball Bearing Series 211 Series
Insert Material Steel
Housing Construction Solid
Insert Type Steel Insert
Suitable for High Temperature No
Housing Material Cast Iron
Bolt Hole Spacing Range [Min] 6 3/8 in
Lubrication Grease
Sensor Ready Adapter Required
Greasable Yes
Length Through Bore 1 27/32 in
Base Length 8 7/8 in
Standoff Housing No
Grease Name Unirex N2
Misalignment Range ±2°
Bearing Design Non-Expansion
Shaft Attachment Setscrew
Bearing Insert INSSCM200
Bolt Hole Spacing Range [Max] 7 7/16 in
Weight 7.54 LB
EAN or UPC 782475116331
