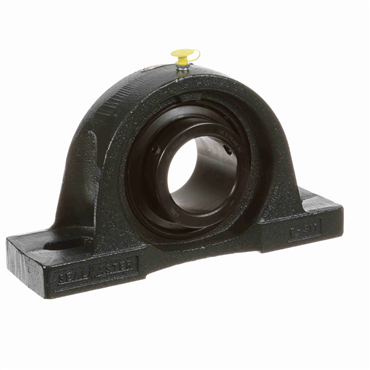

SCM Series Medium-Duty 2-Bolt Pillow Block

P2BSCM208

SCM Series Medium-Duty 2-Bolt Pillow Block
Item #100939346
  • 2 Bolts
  • Cast Iron Housing Material
  • Solid Housing Construction
  • Steel Insert Material
SCM Series Medium-Duty 2-Bolt Pillow Block
    Shipment Options
  • 2 Bolts
  • Cast Iron Housing Material
  • Solid Housing Construction
  • Steel Insert Material

applications

  • Air handling
  • Unit handling
  • Food and beverage
  • Forest products
  • Paper
  • Automotive
  • Chemical
  • Packaging and processing

features

  • Medium-duty utilizes larger rings and housing compared to standard-duty
  • Inner and outer rings are precision hardened and honed for wear resistance and quiet operation
  • DualGuard sealing system includes a mechanically retained, land riding, single lip contact seal plus a patented rubberized flinger for enhanced protection against contaminants
  • Ball cage is made of heat stabilized nylon with fiberglass reinforcement, which allows higher operating temperatures and greater flexibility with added strength
  • Anti-rotation pin makes insert replacement easier with no need to replace grease fittings or location pins
  • 65° set screw spacing offers an optimum balance between locking force and inner ring stress
  • Open and closed safety covers available
Base Width 2 11/16 in
Length Through Bore 2 15/64 in
Housing Height 6 3/32 in
Bolt Hole Spacing 8 in
No. of Bolts 2
Bolt Diameter 0.75 in
Bolt to Bolt [Min] 7.5 in
Speed [Max] 2000 rpm
Shaft Dia. 2.5 in
Locking Device Setscrew Locking Inner Ring
Greasable Yes
Base to Center Height 3 in
Housing Construction Solid
Ball Bearing Series 214 Series
Series P2BSCM
Suitable For Washdown No
End Type Open End
Grease Name Unirex N2
Bearing Type Ball
Bolt Hole Spacing Range [Min] 7 1/2 in
Bearing Design Non-Expansion
Dynamic Load Capacity 13995 lbf
Bolt to Bolt [Max] 8.5 in
Misalignment Range ±2°
Pillow Block Type Thru-Bolt
Housing Material Cast Iron
Base Length 10 3/4 in
Bolt Hole Spacing Range [Max] 8 1/2 in
Static Load Capacity 9838 lbf
Sensor Ready Adapter Required
Insert Type Steel Insert
Lubrication Grease
Mounted Unit Duty Medium-Duty
Expansion Capability Fixed
Standoff Housing No
Bore Length 2.54 in
Bolt Holes 2
Seal Type Contact Seals
Inch/Metric Inch
Bolt Hole Length 1 5/16 in
Base Height 15/16 in
Take-Up Frame Size LD-45, TS-300
Bearing Insert INSSCM208
Insert Material Steel
Outer Ring Size 214
Shaft Attachment Setscrew
Suitable for High Temperature No
Weight 13.01 LB
EAN or UPC 782475116379
