120RIV

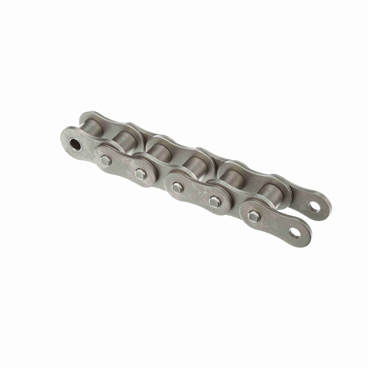

Precision Roller Chain

Item #103372340
each
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • ANSI Standard Chain
  • Riveted Construction
  • 1.500 in Pitch
  • Carbon Steel

features

  • Shotpeened, wide-waisted link plates are manufactured with maximized ball heights from special alloy steels for added strength for chain sizes 60H and above
  • The wide link plate profile improves stress distribution, leading to increased fatigue resistance and enhanced performance
  • Solid bushing and roller for maximum wear life and smooth interaction with the sprocket
  • Preloaded up to 50% of minimum ultimate tensile strength (MUTS), which is especially important for applications involving fixed center-to-center sprockets without take-ups
  • this minimizes or eliminates initial elongation
  • Available for chain sizes 80-180, a full hardened hook cotter provides greater link plate support and up to twice the shear strength of conventional short split cotters
  • The easily installed hardened hook cotter should retain position in high vibration applications
  • Industry leading production technology is employed to hot-dip each chain
  • Working life of the chain is greatly extended compared to cold-dip methods
  • Proprietary lubricants are designed to penetrate and fully coat the bearing surface between the pin and bushing

Specifications

Chain Construction Riveted
Pin Diameter 0.437 in
Material Carbon Steel
Link Plates Thickness 0.187 in
Chain No. 120
Chain Type ANSI
Chain Pitch 1 1/2 in
Roller Dia. 7/8 in
Rated Working Load [Max] 1,278 lb
No. of Strands Across 1
Pin Overall Length 1.955 in
Link Plates Height 1.425 in
Roller Width 1 in
Weight 4.135 LB
EAN or UPC 642051513148
