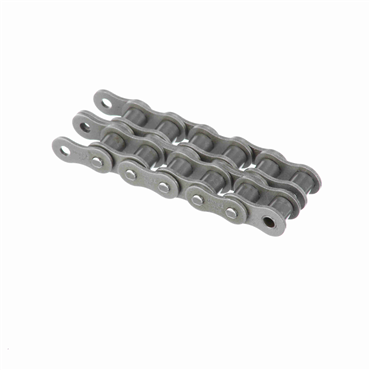

Precision Roller Chain

Item #110485470
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • Precision Roller Chain
  • Riveted Construction
  • .500 in Pitch
  • Carbon Steel


  • Shotpeened, wide-waisted link plates are manufactured with maximized ball heights from special alloy steels for added strength for chain sizes 60H and above
  • The wide link plate profile improves stress distribution, leading to increased fatigue resistance and enhanced performance
  • Solid bushing and roller for maximum wear life and smooth interaction with the sprocket
  • Preloaded up to 50% of minimum ultimate tensile strength (MUTS), which is especially important for applications involving fixed center-to-center sprockets without take-ups
  • this minimizes or eliminates initial elongation
  • Available for chain sizes 80-180, a full hardened hook cotter provides greater link plate support and up to twice the shear strength of conventional short split cotters
  • The easily installed hardened hook cotter should retain position in high vibration applications
  • Industry leading production technology is employed to hot-dip each chain
  • Working life of the chain is greatly extended compared to cold-dip methods
  • Proprietary lubricants are designed to penetrate and fully coat the bearing surface between the pin and bushing


Chain No. 40
Link Plates Thickness 0.06 in
Chain Construction Riveted
Roller Dia. 0.312 in
Pin Diameter 0.156 in
Chain Type ANSI
Pin Overall Length 1.195 in
Chain Pitch 1/2 in
No. of Strands Across 2
Rated Working Load [Max] 155 lb
Material Carbon Steel
Roller Width 0.313 in
Link Plates Height 0.472 in
Weight 0.862 LB
EAN or UPC 642051009368
