80RIV

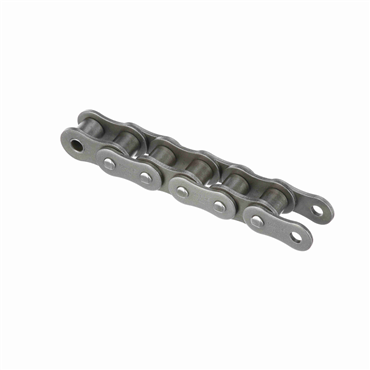

Precision Roller Chain

Item #101015744
Foot
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • ANSI Standard Chain
  • Cottered Construction
  • 1.000 in Pitch
  • Carbon Steel

features

  • Shotpeened, wide-waisted link plates are manufactured with maximized ball heights from special alloy steels for added strength for chain sizes 60H and above
  • The wide link plate profile improves stress distribution, leading to increased fatigue resistance and enhanced performance
  • Solid bushing and roller for maximum wear life and smooth interaction with the sprocket
  • Preloaded up to 50% of minimum ultimate tensile strength (MUTS), which is especially important for applications involving fixed center-to-center sprockets without take-ups
  • this minimizes or eliminates initial elongation
  • Available for chain sizes 80-180, a full hardened hook cotter provides greater link plate support and up to twice the shear strength of conventional short split cotters
  • The easily installed hardened hook cotter should retain position in high vibration applications
  • Industry leading production technology is employed to hot-dip each chain
  • Working life of the chain is greatly extended compared to cold-dip methods
  • Proprietary lubricants are designed to penetrate and fully coat the bearing surface between the pin and bushing

Specifications

No. of Strands Across 1
Pin Diameter 0.313 in
Roller Dia. 5/8 in
Chain Pitch 1 in
Material Carbon Steel
Chain Construction Riveted
Chain No. 80
Pin Overall Length 1.283 in
Chain Type ANSI
Rated Working Load [Max] 600 lb
Roller Width 0.627 in
Link Plates Height 0.943 in
Link Plates Thickness 1/8 in
Weight 1.954 LB
EAN or UPC 642051001102
