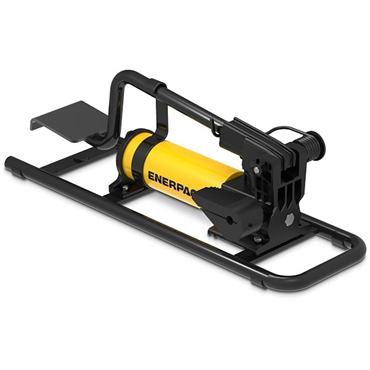

Single-Acting Hydraulic Pump

Item #101347359
    Shipment Options

Product details

  • 10000 psi Maximum Operating Pressure


  • Lightweight and compact design
  • Durable, glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
  • Internal pressure relief valve provides overload protection
  • Non-conductive fiberglass handle for operator safety
  • Large oil capacity to power a wide range of cylinders or tools
  • Two-speed operation on models reduces handle strokes by as much as 78% over single-speed pumps
  • Lower handle effort to minimize operator fatigue


  • 1.8 m safety hose, calibrated gauge with gauge adapter


No. of Speeds 2
Stages 2
Height 7 in
Length 24.100 in
Usable Oil Capacity 30.0 cu in [Max}
Oil Capacity 38 in3
Oil Displacement Per Stroke (1st Stage) 0.687 in3, 11.26 cm3
Maximum Handle Effort 125 lb
Volume Per Stroke 0.687 in³
Oil Displacement Per Stroke (2nd Stage) 0.151 in3, 2.47 cm3
Maximum Operating Pressure 10000 psi
Operating Pressure [Max] 10000 psi, 700 bar
Weight 19.4 LB
EAN or UPC 662005130139
