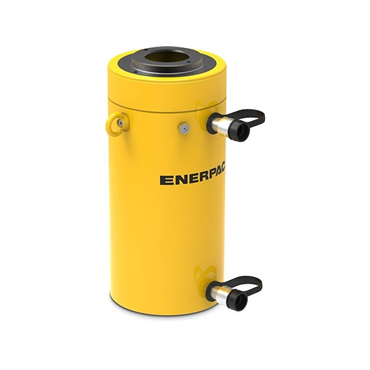

- 10.13 in Stroke
- 8.38 in Outside Diameter
features
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR-400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
| Surface Treatment | Paint |
| Material | Steel |
| Coupler Used | CR400 Coupler |
| Action | Double-Acting |
| Collar Thread | 8 3/8-12 |
| Cylinder Effective Area - Advance | 20.63 in2, 133 cm2 |
| Cylinder Effective Area - Retract | 13.54 in2, 87.4 cm2 |
| Collapsed Height | 18.13 in, 460 mm |
| Cylinder Bore Diameter | 6.5 in, 165.1 mm |
| Series | RRH |
| Collar Thread Length | 2.38 in, 60 mm |
| Cylinder Type | Hollow Plunger |
| Stroke Range | 10.0 to 11.99 in, 240 to 289 mm |
| Centre Hole Diameter | 3.13 in, 79.2 mm |
| Center Hole Diameter | 3.13 in, 79.2 mm |
| Oil Capacity - Retract | 137.17 in3, 2246 cm3 |
| Bore Size | 6.5 in, 165.1 mm |
| Base Mounting Holes Thread Depth | 19 mm |
| Plunger Diameter | 5 in, 127 mm |
| Base Mounting Holes Bolt Circle | 177.8 mm |
| Cylinder Class | 100 Ton |
| Operating Pressure Ranges [MAX] | 10000 psi |
| Collapsed Height [Min] | 15 in, 382 mm |
| Extended Height | 28.25 in, 717 mm |
| Collapsed Height [Max] | 19.99 in, 508 mm |
| Cylinder Capacity Retract [MAX] | 612 kN |
| Oil Capacity - Advance | 208.84 in3, 3420 cm3 |
| Stroke | 10.13 in, 257 mm |
| O.D. | 8.38 in, 212 mm |
| Base Mounting Holes Thread | 5/8-11 |
| Saddle Protrusion From Plunger | 0.5 in, 12 mm |
| Cylinder Capacity Advance [MAX] | 931 kN |
| Top To Retract Port | 3.38 in, 85 mm |
| Saddle Diameter | 4.97 in, 126 mm |
| Plunger Thread Length | 1 in, 25 mm |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Internal Thread | 4-16 |
| Base To Advance Port | 1.5 in, 38 mm |
| Operating Pressure [Max] | 10000 psi, 700 bar |
| Plunger Type | Hollow |
| Body Material | Steel |
| Weight | 240.0 LB |
| EAN or UPC | 662005303151 |
