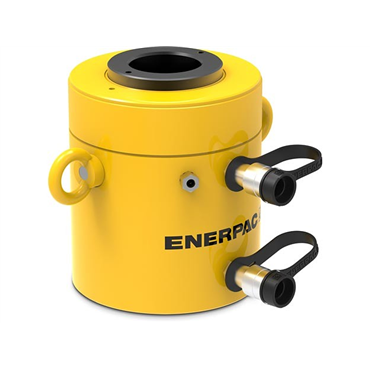

Double-Acting Hydraulic Cylinder

RRH1003

Double-Acting Hydraulic Cylinder
Item #100189915
  • 3 in Stroke
  • 8.38 in Outside Diameter
Double-Acting Hydraulic Cylinder
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 3 in Stroke
  • 8.38 in Outside Diameter

features

  • Relief valves prevent damage in case of over-pressurization
  • Baked enamel finish for increased corrosion resistance
  • Collar threads enable easy fixturing
  • Double-acting operation for fast retraction
  • Nickel-plated, floating center tube increases product life
  • Hollow plunger allows for both pull and push forces
  • CR-400 couplers and dust caps included on all models
  • Plunger wiper reduces contamination, extending cylinder life

includes

  • CR-400 coupler and dust cap on all models
Cylinder Effective Area - Retract 13.54 in2, 87.4 cm2
Oil Capacity - Advance 61.88 in3, 1011 cm3
Operating Pressure [Max] 10000 psi, 700 bar
Collar Thread 8 3/8-12
Cylinder Effective Area - Advance 20.63 in2, 133 cm2
Plunger Internal Thread 4-16
Retracted Height 10 in
Cylinder Capacity - Retract 68 tons
Series RRH
Outside Dia. 8.38 in
Puller Capacity 100 tons
Cylinder Capacity 100 tons
Collapsed Height 10 in, 254 mm
Oil Capacity - Retract 40.64 in3, 666 cm3
Cylinder Capacity - Advance 103 tons
Plunger Diameter 5 in, 127 mm
Single/Double-Acting Double Acting
Extended Height 13 in, 330 mm
Top To Retract Port 3.38 in, 85 mm
Operating Pressure Ranges [MAX] 10000 psi
Cylinder Capacity Advance [MAX] 931 kN
Cylinder Type Hollow Plunger
Action Double-Acting
Saddle Protrusion From Plunger 0.5 in, 12 mm
Centre Hole Diameter 3.13 in, 79.2 mm
O.D. 8.38 in, 212 mm
Base Mounting Holes Bolt Circle 177.8 mm
Return Type Double-Acting, Hydraulic Return
Saddle Diameter 4.97 in, 126 mm
Stroke 3 in, 76 mm
Collar Thread Length 2.38 in, 60 mm
Stroke Range 3.0 to 4.49 in, 48 to 94 mm
Cylinder Class 100 Ton
Base Mounting Holes Thread 5/8-11
Body Material Steel
Collapsed Height [Max] 14.99 in, 381 mm
Bore Size 6.5 in, 165.1 mm
Surface Treatment Paint
Plunger Thread Length 1 in, 25 mm
Center Hole Diameter 3.13 in, 79.2 mm
Cylinder Bore Diameter 6.5 in, 165.1 mm
Coupler Used CR400 Coupler
Plunger Type Hollow
Material Steel
Cylinder Capacity Retract [MAX] 612 kN
Base Mounting Holes Thread Depth 19 mm
Collapsed Height [Min] 10 in, 255 mm
Base To Advance Port 1.5 in, 38 mm
Weight 143.0 LB
EAN or UPC 662005303229
