Carbon Steel 0.313 in ID Right-Handed Male Rod End

CMHD5

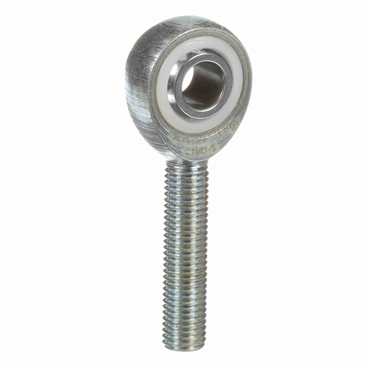

Carbon Steel 0.313 in ID Right-Handed Male Rod End
Item #102000566
  • 0.313 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Carbon Steel 0.313 in ID Right-Handed Male Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.313 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Thread Direction Right-Handed
Inside Ring Width 0.437 in, 11 mm
Housing Width 11/32 in
Lubrication Type Self-Lubricatable
Total Height 2.313 in, 59 mm
I.D. 0.313 in, 8 mm
Ball Flat Dia. 29/64 in
Grade Commercial
Center Line Length 1.875 in
Static Load Rating [Max] 1575 lbf
Lube Fitting w/o Lube Fitting
Head Diameter 7/8 in
Ball Dia. 0.625 in, 16 mm
Right / Left Hand Right Hand
Head Dia. 0.875 in, 22 mm
Angle of Misalignment 7⁰
Insert Material Thermo-Plastic
Thread Type UNF-3A
Misalignment Range ±7°
Liner N/A
Lubrication Self-Lubricating
Operating Temperature [Max] 125 ⁰F
Shaft Height 1.875 in, 48 mm
Head Width 0.344 in, 9 mm
Series Heim®
Thread Size 0.3125-24
Inch/Metric Inch
Style Self-Lubricating
Threads per Inch 24
Finish Steel
Static Load Rating 1575 lbf, 7006 N
Bearing Type Self-Lubricating
Ball Material 52100 Alloy Steel
Type Male Spherical Plain Rod End
Length Through Bore 0.4375 in
Bore Size 0.313 in - 5/16 in
Housing Material Carbon Steel
Thread Pitch N/A
Thread Length 1.25 in, 32 mm
Weight 0.08 LB
EAN or UPC 637400153137
