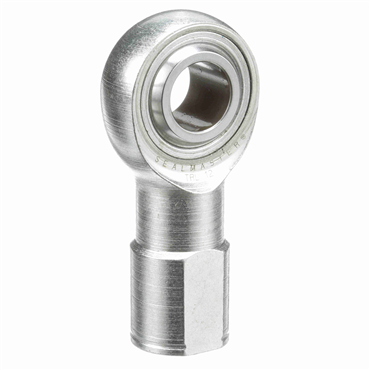

Carbon Steel Left-Handed 0.75 in ID Female Rod End

HFL12

Carbon Steel Left-Handed 0.75 in ID Female Rod End
Item #101997487
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Carbon Steel Left-Handed 0.75 in ID Female Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Grade Precision
Misalignment Range ±7°
Head Diameter 1 3/4 in
Inch/Metric Inch
Ball Flat Dia. 1.01 in
Housing Material Carbon Steel
I.D. 0.75 in, 19 mm
Operating Temperature [Max] 250 ⁰F
Housing Width 11/16 in
Total Height 3.75 in, 95.25 mm
Length Through Bore 0.875 in
Right / Left Hand Left Hand
Series Heim®
Thread Pitch N/A
Thread Size 0.75-16
Type Female Spherical Plain Rod End
Base Dia. 1 1/8 in
Bore Size 0.750 in - 3/4 in
Thread Type UNF-3B
Lubrication Type Non-Lubricatable
Shaft Height 2.875 in, 73.02 mm
Static Load Rating 11300 lbf, 50264.886 N
Ball Material 52100 Alloy Steel
Lube Fitting w/o Lube Fitting
Angle of Misalignment 7⁰
Across Wrench Flats 1 in
Static Load Rating [Max] 10500 lbf
Insert Material Brass
Inside Ring Width 0.875 in, 22 mm
Lubrication Non-Relubricatable
Thread Length 1.75 in, 44.45 mm
Width Across Flats 1 in, 25.4 mm
Ball Dia. 1.312 in, 33 mm
Head Dia. 1.75 in, 44 mm
Head Width 0.687 in, 17 mm
Finish Steel
Thread Direction Left-Handed
Threads per Inch 16
Style Four Piece - Metal to Metal
Bearing Type 4 Piece - Metal-to-Metal
Center Line Length 2.875 in
Weight 0.64 LB
