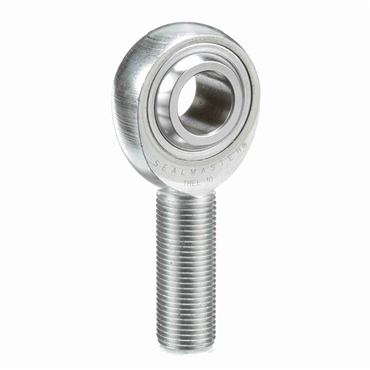

Carbon Steel 0.625 in ID Left-Handed Male Rod End

HML10

Carbon Steel 0.625 in ID Left-Handed Male Rod End
Item #102036761
  • 0.625 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Carbon Steel 0.625 in ID Left-Handed Male Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.625 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Type Male Spherical Plain Rod End
I.D. 0.625 in, 16 mm
Lubrication Type Non-Lubricatable
Bore Size 0.750 in - 3/4 in
Thread Size 0.625-18
Finish Steel
Liner N/A
Thread Length 1.625 in, 41 mm
Static Load Rating [Max] 9350 lbf
Head Dia. 1.5 in, 38 mm
Static Load Rating 8050 lbf, 35808 N
Inside Ring Width 0.75 in, 19 mm
Grade Precision
Center Line Length 2.625 in
Insert Material Brass
Inch/Metric Inch
Ball Flat Dia. 1.01 in
Total Height 3.375 in, 86 mm
Right / Left Hand Left Hand
Threads per Inch 18
Shaft Height 2.625 in, 67 mm
Thread Type UNF-3A
Housing Material Carbon Steel
Style Four Piece - Metal to Metal
Angle of Misalignment 8⁰
Head Diameter 1 3/4 in
Thread Direction Left-Handed
Thread Pitch N/A
Operating Temperature [Max] 250 ⁰F
Ball Dia. 1.125 in, 29 mm
Length Through Bore 0.875 in
Lube Fitting w/o Lube Fitting
Lubrication Non-Relubricatable
Bearing Type 4 Piece - Metal-to-Metal
Ball Material 52100 Alloy Steel
Head Width 0.562 in, 14 mm
Housing Width 0.687 in
Series Heim®
Misalignment Range ±5°
Weight 0.41 LB
EAN or UPC 637400155698
