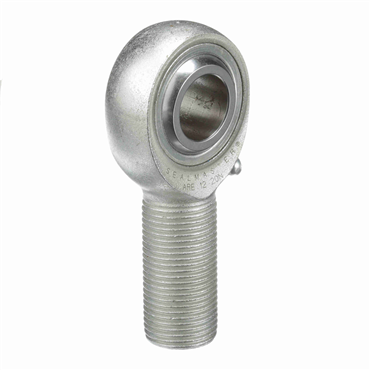

4130 or 4340 Alloy Steel 0.75 in ID Right-Handed Male Rod End

HMX12G

4130 or 4340 Alloy Steel 0.75 in ID Right-Handed Male Rod End
Item #101999963
  • 0.75 in Inner Diameter
  • 4130 or 4340 Alloy Steel Housing Material
  • Right-Handed Thread Direction
4130 or 4340 Alloy Steel 0.75 in ID Right-Handed Male Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Inner Diameter
  • 4130 or 4340 Alloy Steel Housing Material
  • Right-Handed Thread Direction
Bearing Type 4 Piece - Metal-to-Metal
Lubrication Relubricatable
Housing Width 0.687 in
Ball Material 52100 Alloy Steel
Static Load Rating [Max] 23225 lbf
Operating Temperature [Max] 250 ⁰F
Lubrication Type Lubricatable
Lube Fitting w/ Lube Fitting
Thread Type UNF-3A
Thread Length 1.75 in, 44 mm
Housing Material 4130 or 4340 Alloy Steel
Insert Material Aluminum Bronze
Finish Steel
Thread Pitch N/A
Center Line Length 2.875 in
I.D. 0.75 in, 19 mm
Liner N/A
Thread Direction Right-Handed
Thread Size 0.875-14
Style Extra Capacity - Four Piece - Metal to Metal
Series Heim®
Total Height 3.75 in, 95 mm
Head Diameter 1 3/4 in
Angle of Misalignment 7⁰
Ball Flat Dia. 0.978 in
Head Width 0.687 in, 17 mm
Bore Size 0.750 in - 3/4 in
Shaft Height 2.875 in, 73 mm
Right / Left Hand Right Hand
Inside Ring Width 0.875 in, 22 mm
Threads per Inch 14
Grade Precision
Ball Dia. 1.312 in, 33 mm
Length Through Bore 0.875 in
Type Male Spherical Plain Rod End
Inch/Metric Inch
Static Load Rating 21570 lbf, 95948 N
Head Dia. 1.75 in, 44 mm
Misalignment Range ±7°
Weight 0.72 LB
EAN or UPC 637400156299
