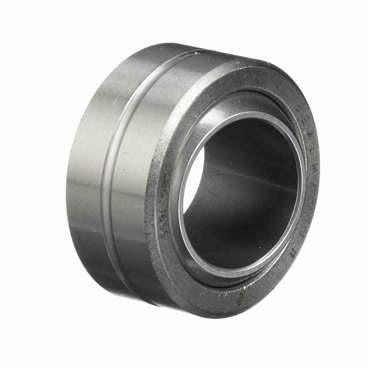

LHSS Series Two-Piece Precision Spherical Bearing

LHSS16

LHSS Series Two-Piece Precision Spherical Bearing
Item #101992094
  • 1" ID x 1 3/4" OD x 1" Inner Ring Width
  • 0.797" Outer Ring Width
  • Unsealed Spherical Plain Bearing
LHSS Series Two-Piece Precision Spherical Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1" ID x 1 3/4" OD x 1" Inner Ring Width
  • 0.797" Outer Ring Width
  • Unsealed Spherical Plain Bearing
Outside Ring Width 0.797 in, 20.24 mm
Outer Ring Width 0.797 in
Insert Material N/A
Type Spherical
Operating Temperature [Max] 300 ⁰F
Ball Flat Dia. 1.118 in
Outer Race Material 300 Series Stainless Steel
Enclosure Open
Axial Static Load Rating 14451 lbf
Inside Ring Width 1 in, 25.4 mm
Ball Material 440C Stainless Steel, Heat Treated & Chrome Plated
O.D. 1.75 in, 44.45 mm
Lubrication Type Requires Relubrication
Self-Lubricating No
Inner Ring Width 1 in
Static Load Rating 53800 lbf, 239314 N
Style Two Piece - Metal to Metal
Spherical Diameter 1 1/2 in
I.D. 1 in, 25.4 mm
Inch/Metric Inch
Series Heim®
Angle of Misalignment 7.5 degrees
Material 440C Stainless Steel
Static Load Rating [Max] 83000 lbf
Ball Dia. 1.5 in, 38.1 mm
Housing Bore Size [Min] 1.75 in
Operating Temperature [Min] -30 ⁰F
Weight 0.38 LB
EAN or UPC 637400157647
