Heim BearingsM4CRG

M4CRG

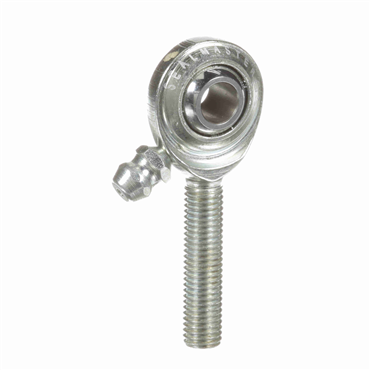

Carbon Steel 0.25 in ID Right-Handed Male Rod End
Item #102299884
  • 0.25 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Heim BearingsM4CRG
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.25 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Ball Dia. 0.515 in, 13 mm
Thread Size 0.25-28
Thread Type UNF-3A
Total Height 1.937 in, 49 mm
Series Heim®
Head Width 0.281 in, 7 mm
Operating Temperature [Max] 250 ⁰F
Thread Length 1 in, 25 mm
Type Male Spherical Plain Rod End
Inch/Metric Inch
Thread Direction Right-Handed
Insert Material Steel
Angle of Misalignment 8⁰
Static Load Rating 2000 lbf, 8896 N
I.D. 0.25 in, 6 mm
Ball Material 52100 Alloy Steel
Head Dia. 0.75 in, 19 mm
Bearing Type 2 Piece - Metal-to-Metal
Inside Ring Width 0.375 in, 10 mm
Lubrication Type Lubricatable
Housing Material Carbon Steel
Shaft Height 1.562 in, 40 mm
Weight 0.05 LB
EAN or UPC 637400158446
