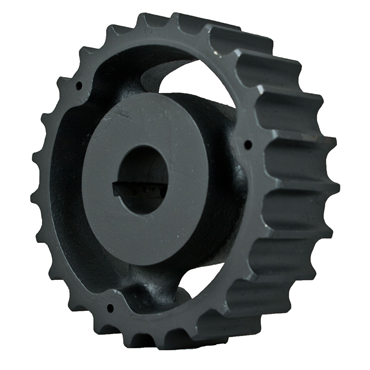

Tabletop Sprocket

820BS23 1 3/16

Tabletop Sprocket
Item #100801759
  • Tabletop Sprocket
  • 820 Chain Number
  • 23 Teeth
  • Without Hardened Teeth
  • 1 Strand
  • 1.6875 in Length Through Bore
  • 1.1875 in Finished Bore
+ Show More + Show Less
Tabletop Sprocket
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Tabletop Sprocket
  • 820 Chain Number
  • 23 Teeth
  • Without Hardened Teeth
  • 1 Strand

features

  • To be used with table top chains
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Bores are concentric to pitch line, minimizing run out
Key Way Size 1/4 X 1/8 in
Sprocket Style Arm Body
Material Cast Iron, Semi-Steel
Keyway With Keyway & Set Screw
Finished Bore 1 3/16 in
Bore Type Finished Bore
Bore Style Bored to Size
Width Across Teeth 1.6875 in
Length Through Bore 1.688 in
Pitch Diameter 5.6 in
Pitch Diameter [Min] 5.56 in
Effective No. of Teeth 11 1/2
Material External Use Cast Iron
Chain No. 820
Single Strand Tooth Thickness 1.688 in
Set Screw Size 5/16-18 UNC
No. of Teeth 23
Outside Dia. [Min] 5.59 in
O.D. 5.59 in
Chain Strands 1
Material Internal Use Cast Iron
Outside Dia. 5.59 in
Finished Bore Size 1.188 in
Chain Sprocket Number 820
Weight 6.15 LB
EAN or UPC 697950175317
