D160C60

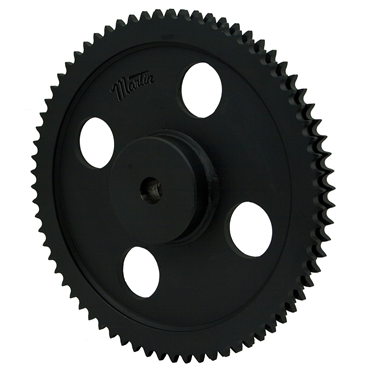

Double Strand Sprocket

Item #100806358

1.5 in Minimum Bore

7 in Maximum Bore

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

US Tsubaki Inc. D160C60

D160C60 SB 2

Item #105089131

each

Compare

Product Details

Maximum bores shown will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to keyseat.

Tolerances meet or exceed ANSI standards
Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturers’ split-taper bushings

Specifications

Chain Sprocket Pitch	2 in
Bore Type	Finished Bore
Bore Range [Min]	1.5 in
Length Through Bore	7.125 in
Bore Size [Min]	1.5 in
Outside Dia.	39.362 in
Material External Use	Steel
Material	Steel
Series	C
Bore Size [Max]	7 in
O.D.	39.362 in
Pitch Diameter [Min]	38.21 in
Bore Style	Minimum Bore
Finished Bore Size	1.5 in
Chain No.	160
Bushing Bore [Min]	1.5 in
Hub Projection	1.8505 in
Single Strand Tooth Thickness	1.119 in
Hub O.D.	10 in
Material Internal Use	Carbon Steel
Sprocket Style	C
Family Name	No. 160 - 2 in Pitch - Double - Type B & C
No. of Teeth	60
Construction Internal	Welded With Lightening Holes
Hardened Teeth	Without Hardened Teeth
Inch/Metric	Inch
Pitch Dia.	38.215 in
Bushing Bore Size [Min]	1.5 in
Chain Pitch	2.000 in
Stock Bore Size	1.5 in
Bore Range [Max]	7 in
Hub Length Thru	6.006 in
Martin No.	160C60
Outside Dia. [Min]	39.362 in
Bushing Bore Size [Max]	7 in
No. of Teeth Rows Strands	2
No. of Strands Across	2
Hub Dia.	10 in
Pitch Diameter	38.21 in
Caliper Diameter	37.19 in
Width Across Teeth	3.424 in
Chain Sprocket Number	160
Weight	564.0 LB
EAN or UPC	697950027715
