- DRILL 1-1/4 MAG MOT 11.5A
description

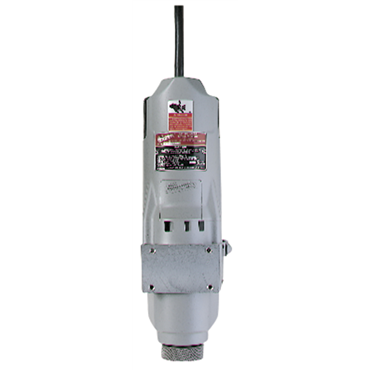

- This heavy duty unit is built for production drilling and will take the toughest drilling jobs. Model 4297-1 features an 11.5 amp motor with a no.3 morris taper chuck. This two speed unit has 250 and 500 RPM, geared low for maximum torque. Use the larger 4203 adjustable base for this powerhouse, and no job is too large.
features
- Powerful 11.5 amp motor: engineered for the toughest applications, delivering 2375/750 RPM
- Dual-mount gear case/reverse mount: permits tight quarter drilling
- 1-1/4 in. capacity: taps up to 1 in., 14-threaded holes
- Maximum force: develops up to 1600 Lbs. of drill point pressure with a 1 in. steel plate
| Range Spindle Lock | No |
| Length | 7 in |
| Rocker Switch | Yes |
| Cord Length | 8 ft |
| Switch Type | Push |
| RPM [Max] | 500 rpm |
| Standard | CSA, UL |
| Chuck Design | Keyless |
| Speed Range | 0-750 rpm |
| Side Handle | No |
| Color | Red, Gray, Black |
| Housing Material | Metal |
| Drill Amperage | 11.5 A |
| Height | 19 in |
| Overload Protection | No |
| Reverse | Yes |
| Drill Type | Variable Speed Drill |
| Cordless | No |
| Variable Speed | No |
| Chuck Size | 1 3/16 in |
| Voltage | 120 V |
| Case Included | No |
| Tool Handle Type | In Line |
| Torque [Max] | 1600 in-lbs |
| Handle Material | Metal |
| Lock-On Switch | No |
| Warranty | 5 Years |
| Width | 7.13 in |
| Weight | 25.0 LB |
| EAN or UPC | 45242013258 |
