6470-21

SAW CIRC 10-1/4 15A

Item #101607378

Auto Replenish

each One-time purchase

Product Details

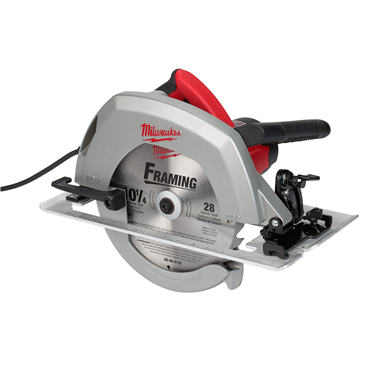

The 6470-21, 10-1/4 in. circular saw is built with the power and capacity to handle the most extreme cutting applications. The powerful 15 amp, 5,200 RPM motor delivers maximum power for high performance cutting without bogging down under load. An aircraft aluminum shoe will not bend or warp in extreme cutting applications. The electric brake increases productivity by stopping the blade in seconds. These heavy duty features combined with the 3-13/16 in. depth of cut capacity and 60° bevel capacity make the 6470-21 the most popular 10-1/4 in. circular saw in the industry.

Powerful 15 amp, 5,200 RPM motor – delivers maximum power for cutting without bogging down under load
3-13/16 in. depth of cut capacity – provides enough capacity to cut 4 in. material in a single pass
60° bevel capacity – provides maximum bevel capacity for cutting roof rafters, trusses and joists
Electric brake - increases productivity by stopping the blade in seconds
Aircraft aluminum shoe – will not bend or warp in extreme cutting applications

Specifications

Spindle Lock	Yes
Blade Location	Right
Voltage	120 V
Horsepower	3.1 hp
Blade Wrench Included	Yes - Loose
Width	17 in
Cordless	No
Dust Port	No
Wattage	2300 W
Warranty	5 Years
Electric Motor Brake	Yes
Cut Depth @ 45° [Max]	2.75 in
Amperage	15 A
Dust Collection	No
Product Storage Included	Case
Height	15.5 in
No Load RPM	5200 rpm
Variable Speed	No
Overall Length	13.5 in
Cord Length	144 in
Blade Dia.	10 1/4 in
Bevel Capacity	60°
Includes	(1) 10-1/4" Circular Saw, (1) Wood Cutting Blade, (1) Rip Fence, (1) Carrying Case
Depth Adjustment	Yes
Integrated Work Light	Not Featured
Housing Material	Metal, Plastic
Bevel Stops	Yes
Arbor Size	0.625 in
Saw Drive	Direct Drive
Main Handle Type	D-Ring
Cut Depth @ 90° [Max]	3.8 in
Shoe Material	aluminum
Blade Material	Steel
Dust Blower	No
Standard	ETL, UL
Color	Red, Black, Gray
Blade Type	Wood Cutting Blade
Weight	33.34 LB
EAN or UPC	45242157433
