SJ7174SS

Pitchlign® Series 0.875 in ID Heavy Duty Sealed Needle Bearing

Item #101510069

Auto Replenish

each One-time purchase

Alternate Products

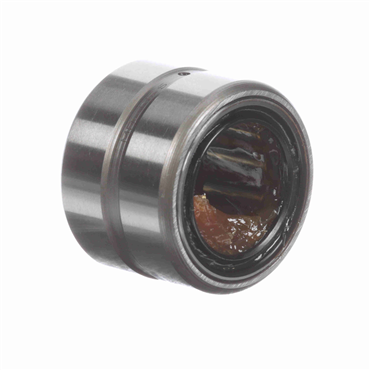

McGill MR 14 RSS

Cagerol® Sealed Standard Radial Needle Roller Bearing Without Inner

Item #101087202

each

Compare

Product Details

Specifications

Shaft Diameter - Press Fit [Max]	0.8742 in
Static Load Rating	6700 lbf, 29803.074 N
Type	Sealed
Bore Type	Round Bore, Inch Type
Total Width	1 in, 25.4 mm
Housing Bore - Press Fit [Min]	1.3737 in
Operating Temperature [Max]	300 ⁰F
Housing Bore - Slip Fit [Min]	1.375 in
Tolerance	Iso Class 0 (RBEC 1)
Radial Internal Clearance Specification	N/A
Origin	Needle Radial
Dynamic Load Rating (lb)	5800
Shaft Diameter - Slip Fit [Min]	0.8745 in
Housing Bore - Slip Fit [Max]	1.376 in
Precision Ground	Yes
No. of Rows	Single
Housing Bore - Press Fit [Max]	1.3747 in
Inside Diameter Tolerance [Min]	0.8759 in
O.D.	1.375 in, 34.925 mm
I.D.	0.875 in, 22.225 mm
Bore Shape	Round
Cage Material	Steel
Enclosure	Double Sealed
RPM [Max]	4400 rpm
Fillet Radius	0.04 in, 1.016 mm
Finish	Chrome Steel
Static Load Rating (lb)	6700
Series	Pitchlign®
Limiting Speed - Oil	4400 rpm
Lubrication Type	Hole On Outer Ring
Inside Diameter Tolerance [Max]	0.8768 in
Style	Caged Needle Bearing, Sealed
Material	52100 Bearing Quality Steel
Shaft Diameter - Press Fit [Min]	0.8737 in
Shaft Diameter - Slip Fit [Max]	0.875 in
End Type	Open End
Operating Temperature [Min]	-40 ⁰F
Oil Hole	w/Oil Hole
Housing Shoulder Diameter	1.1875 in
Self Aligning	No
Bearing Design	Outer Ring & Roller Assembly
Radial Internal Clearance	N/A
Dynamic Load Rating	4700 lbf
Inch/Metric	Inch
Compatible Inner Ring	IR7174
Capacity	Standard Capacity
Seal Material	Sealed
Weight	0.187 LB
EAN or UPC	637400014452
