SJ9607

Pitchlign® Series 3.5 in ID Heavy Duty Unsealed Needle Bearing

Item #100992731

Auto Replenish

each One-time purchase

Alternate Products

McGill GR 56 N

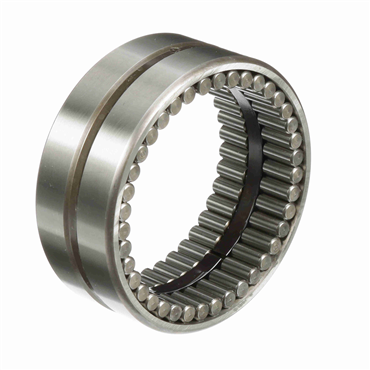

Guiderol® Narrow Radial Needle Roller Bearing Without Inner

Item #101088678

each

Compare

Product Details

Specifications

Style	Caged Needle Bearing
Oil Hole	w/Oil Hole
Total Width	1.75 in, 44.45 mm
Housing Bore - Press Fit [Max]	4.4996 in
Precision Ground	Yes
Lubrication Type	Hole On Outer Ring
Inch/Metric	Inch
Housing Bore - Slip Fit [Max]	4.5014 in
Shaft Diameter - Slip Fit [Max]	3.5 in
Material	52100 Bearing Quality Steel
Origin	Needle Radial
I.D.	3.5 in, 88.9 mm
Operating Temperature [Min]	-40 ⁰F
Radial Internal Clearance Specification	N/A
Fillet Radius	0.1 in, 2.54 mm
Compatible Inner Ring	IR9607
Shaft Diameter - Press Fit [Max]	3.4986 in
Finish	Chrome Steel
Self Aligning	No
Housing Bore - Press Fit [Min]	4.4982 in
Limiting Speed - Oil	3800 rpm
Inside Diameter Tolerance [Max]	3.5024 in
Bore Shape	Round
Inside Diameter Tolerance [Min]	3.5012 in
Tolerance	Iso Class 0 (RBEC 1)
Bore Type	Round Bore, Inch Type
Static Load Rating	59600 lbf, 265113.912 N
Capacity	Standard Capacity
Shaft Diameter - Press Fit [Min]	3.4977 in
Radial Internal Clearance	N/A
Cage Material	Steel
Standard	MS 51961
Housing Bore - Slip Fit [Min]	4.5 in
No. of Rows	Single
Dynamic Load Rating	24400 lbf
O.D.	4.5 in, 114.3 mm
Shaft Diameter - Slip Fit [Min]	3.4991 in
Static Load Rating (lb)	59600
Bearing Design	Outer Ring & Roller Assembly
Series	Pitchlign®
Enclosure	Open
Type	Unsealed
Operating Temperature [Max]	300 ⁰F
End Type	Open End
Dynamic Load Rating (lb)	29900
RPM [Max]	3800 rpm
Housing Shoulder Diameter	3.9375 in
Weight	2.47 LB
EAN or UPC	637400017316
