Y96L

Chrome Steel 1 in ID Sealed Yoke Type Cam Follower

Item #100740667

Auto Replenish

each One-time purchase

Alternate Products

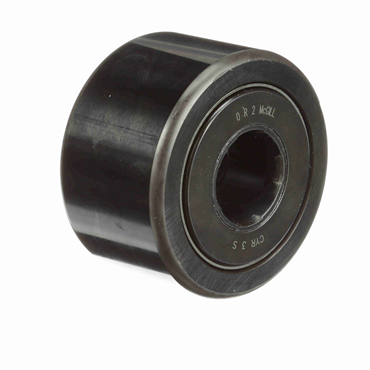

McGill CYR 3 S

CAMROL® Cylindrical Yoke Mount Sealed Cam Follower

Item #100000600

each

Compare

Smith Bearing YR-3-X

YR-X Series Sealed Yoke Roller

Item #101755304

each

Compare

Koyo Corp. YCRS-48

YCRS Series Double Shielded Round Yoke Roller

Item #101758315

each

Compare

Product Details

Specifications

Inside Diameter Tolerance [Min]	0.9995 in
Groove Dia.	0.125 in, 3.175 mm
I.D.	1 in, 25.4 mm
Outside Ring Shape	Flat
Inside Diameter Tolerance [Max]	1.001 in
Inch/Metric	Inch
Roller Width	1.75 in, 44.45 mm
Total Width	1.813 in, 46.038 mm
Style	Yoke Follower, Sealed
Dynamic Load Rating	17000 lbf
Overall Width Tolerance [Min]	1.8075 in
Inner Ring	With Inner Ring
Series	Y-L
Roller Material	Chrome Steel
O.D.	3 in, 76.2 mm
Lubrication Type	Inner Ring
Roller Dia.	3.000 in
Overall Width Tolerance [Max]	1.8125 in
Overall Width	1.8125 in
Bearing Type	Cylindrical Rollers
Material	52100 Bearing Quality Steel
RPM [Max]	1060 rpm
Enclosure	Sealed
Operating Temperature [Max]	250 ⁰F
Type	Yoke Roller
Static Load Rating	49900 lbf, 221966.178 N
Roller Type	Cylindrical
Finish	Black Oxide
Weight	2.86 LB
EAN or UPC	637400008833
