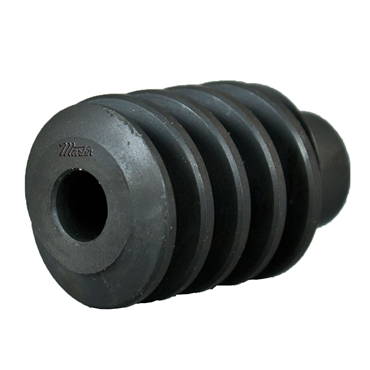

16 DP 14.5⁰ PA 0.625 in PD Steel/Hardened Right Hand Worm

HLVH-1

16 DP 14.5⁰ PA 0.625 in PD Steel/Hardened Right Hand Worm
Item #102165440
  • 0.75 in Outside Diameter
  • 0.43 in Hub Diameter
  • Steel, Hard-Polished Thread
16 DP 14.5⁰ PA 0.625 in PD Steel/Hardened Right Hand Worm
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Outside Diameter
  • 0.43 in Hub Diameter
  • Steel, Hard-Polished Thread

description

  • When used with worm gears, Boston Gear worms provide an effective answer for power transmission applications requiring high ratio speed reduction in a limited space using right angle (90°), non-intersecting shafts. Manufactured from acetal, nylon, and hardened and unhardened steel, they offer the smoothest, quietest form of gearing when properly applied.Because the efficiency of a worm gear drive depends on the lead angle and number of starts on the worm, it's important to keep the ratio as low as possible. It is equally important that worms and worm gears used together must have the same diametrical pitch and threads.

features

  • Increased efficiency with lower ratios
  • Resistance to back driving with some ratios
  • Minimal space requirements
  • High ratio speed reduction
  • Smoothest, quietest form of gearing
  • 90° nonintersecting shaft applications
Hardened Teeth With Hardened Teeth
Face Thread Length 1 in
Pitch Diameter 0.625 in
Bore Size 0.3125 in
Spiral Tooth Yes
Material Steel, Hard-Polished Thread
Hand Right
No. of Threads Single
Length Through Bore 1.25 in
Pressure Angle 14 1/2 degrees
Pitch Dia. 0.625 in
Hub Dia. 0.43 in
Diametral Pitch 16
No. of Leads Single
O.D. 0.75 in
Right / Left Hand Right Hand
Weight 0.071 LB
EAN or UPC 781711130322
