SF-1 3/8

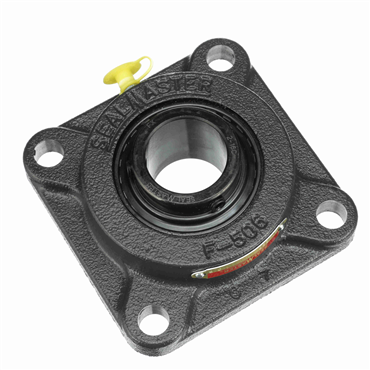

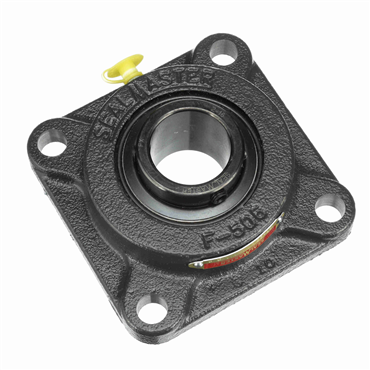

SF Series Standard-Duty Cast Iron 4-Bolt Flange Unit

Item #101795742
each
    Shipment Options

Alternate Products

Product details

  • 1.375" Shaft, Contact Seals, Setscrew Locking, Regreasable

applications

  • High radial or thrust loads

features

  • One-piece, high grade, cast iron housing
  • Deep groove ball bearing
  • Spherical outer race
  • Synthetic lip type seal
  • Bearings equipped with steel finger
  • Positive locking by setscrew through extended inner race
  • 1/4-28 threaded grease fitting

Specifications

Housing Length 4 5/8 in
Housing Material Cast Iron
Flange Thickness 5/8 in
Housing Width 1 3/8 in
Housing Construction 1 Piece
Bolt Hole Spacing 3 5/8 in
Locking Device Setscrew Locking Collar
Bearing Design Non-Expansion
Duty Normal-Duty
Mounted Unit Duty Normal-Duty
Seal Type Contact Seals
Overall Width 1 27/32 in
Inch/Metric Inch
Temperature Range [Max] 225 °F
End Type Open End
Shaft Dia. 1.375 in
Bearing Type Ball Bearing
Housing Height 4 5/8 in
Bolt Circle Dia. 5 1/8 in
Flange Type 4-Bolt Flange
Bearing Insert BG25-1-3/8
Lubrication Relubricatable
Style 4-Bolt Flange
Bolt Size 1/2 in
Weight 3.701 LB
EAN or UPC 781711647479
