056T11D15534

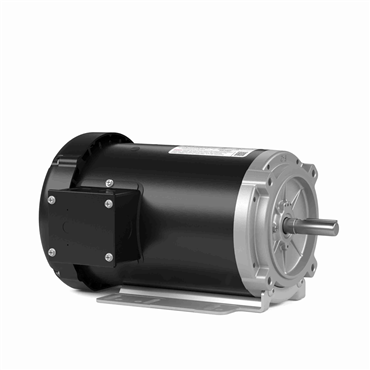

Flex-in-1™ Three Phase General Purpose AC Motor FX34BK005

Item #119820175

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Duty	Continuous
Shaft Dia.	0.63 in
Electrical Type	Squirrel Cage Inverter Rated
Rotation	Reversible
Enclosure	Drip Proof
Voltage	230/460 & 190/380 V
KVA Code	K
Standard	CE, CSA, UL
Ambient Temperature	104 °F
Phase	Three Phase
Frequency	60 & 50 Hz
Amps 2	2.4/1.2 A
Frame	56HC
Amps	2.8/1.4 A
Ambient Temperature Range [Max]	104 °F
Poles	6
Power Rating	0.75 Hp, 0.56 KW
Mounting	Bolt-on Base
Voltage Rating	208-230/460 V
Speed 2	1140
Service Factor	1.15 & 1.00
Insulation Class	F
Power Factor	63.2
Frame Material	Rolled Steel
Motor Orientation	Horizontal
Motor Application	General Purpose
Shaft Type	NEMA 56
Starting Type	Line Or Inverter
Drive End Bearing	6203
Inch/Metric	Inch
No. of Speeds	1
RPM [Max]	1140 RPM
Bearing Type	Ball
Thermal Protection	No Protection
NEMA Design	B
Efficiency	81.7 & 83.8 %
Weight	0.0 LB
EAN or UPC	691720115008
