056T11F15540

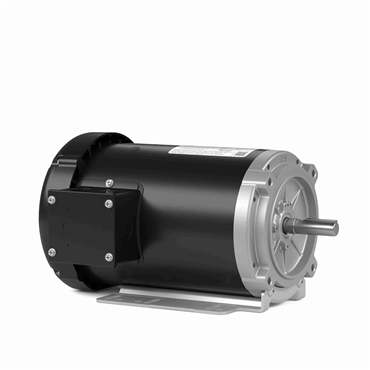

Flex-in-1™ Three Phase General Purpose AC Motor FX12BK006

Item #119820151

56C Frame

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Thermal Protection	No Protection
Starting Type	Line Or Inverter
Ambient Temperature Range [Max]	104 °F
Frame Material	Rolled Steel
KVA Code	J
Phase	Three Phase
Duty	Continuous
NEMA Design	B
Voltage Rating	208-230/460 V
Amps	2.1/1.1 A
Rotation	Reversible
Shaft Type	NEMA 56
Mounting	Bolt-on Base
Poles	6
No. of Speeds	1
Enclosure	Totally Enclosed Fan Cooled
Speed 2	1140
Frame	56C
Motor Orientation	Horizontal Or Up Or Down
Voltage	230/460 & 190/380 V
Service Factor	1.15 & 1.00
Ambient Temperature	104 °F
Shaft Dia.	0.63 in
Electrical Type	Squirrel Cage Inverter Rated
Frequency	60 & 50 Hz
Motor Application	General Purpose
Efficiency	72 & 68 %
Amps 2	2.2/1.1 A
Inch/Metric	Inch
Drive End Bearing	6203
Bearing Type	Ball
Standard	CE, CSA, UL
Power Factor	61.5
RPM [Max]	1140 RPM
Power Rating	0.5 Hp, 0.37 KW
Insulation Class	F
Resistance	51.8
Weight	24.0 LB
EAN or UPC	691720115039
