056T11F15542

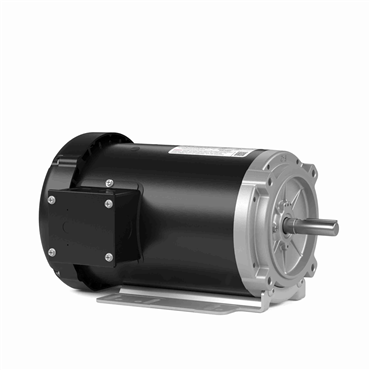

Flex-in-1™ Three Phase General Purpose AC Motor FX34BK006

Item #120386077

56HC Frame

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Amps 2	3.5/1.75 A
Insulation Class	F
RPM [Max]	1140 RPM
Standard	CE, CSA, UL
Service Factor	1.15 & 1.00
Starting Type	Line Or Inverter
Inch/Metric	Inch
Voltage	230/460 & 190/380 V
Rotation	Reversible
Bearing Type	Ball
NEMA Design	B
Frequency	60 & 50 Hz
No. of Speeds	1
Power Rating	0.75 Hp, 0.56 KW
Amps	3.3/1.6 A
Efficiency	75.2 & 76.3 %
Duty	Continuous
Ambient Temperature	104 °F
Motor Orientation	Horizontal Or Up Or Down
Thermal Protection	No Protection
Motor Application	General Purpose
Poles	6
Shaft Dia.	0.63 in
Shaft Type	NEMA 56
Phase	Three Phase
Electrical Type	Squirrel Cage Inverter Rated
Enclosure	Totally Enclosed Fan Cooled
Mounting	Bolt-on Base
Frame Material	Rolled Steel
Drive End Bearing	6203
Frame	56HC
KVA Code	M
Power Factor	56.4
Weight	32.0 LB
EAN or UPC	691720115022
