056T17D15850

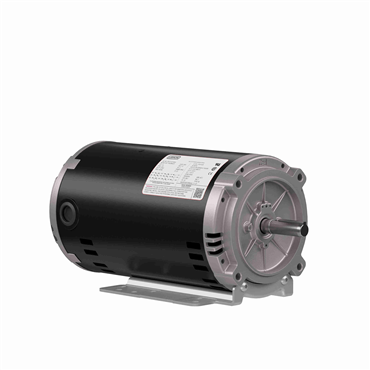

Flex-in-1™ Three Phase General Purpose AC Motor FX32BK003

Item #119820166

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Voltage	230/460 & 190/380 V
Phase	Three Phase
Insulation Class	F
RPM [Max]	1725 RPM
Enclosure	Drip Proof
Electrical Type	Squirrel Cage Inverter Rated
Mounting	Bolt-on Base
Standard	CE, CSA, UL
Voltage Rating	230/460 V
Motor Application	General Purpose
Thermal Protection	No Protection
NEMA Design	B
Efficiency	86.5 & 84.1 %
Drive End Bearing	6203
Amps	4.4/2.2 A
Ambient Temperature	104 °F
Rotation	Reversible
Motor Orientation	Horizontal
KVA Code	M
Shaft Dia.	0.63 in
Starting Type	Line Or Inverter
Power Factor	75
Ambient Temperature Range [Max]	104 °F
Poles	4
Service Factor	1.15 & 1.00
Inch/Metric	Inch
Amps 2	5/2.5 A
Bearing Type	Ball
Frequency	60 & 50 Hz
Power Rating	1.5 Hp, 1.1 KW
Frame	56HC
No. of Speeds	1
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Duty	Continuous
Speed 2	1725
Weight	44.0 LB
EAN or UPC	691720115091
