056T17D15851

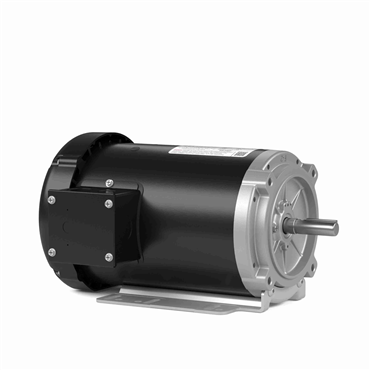

Flex-in-1™ Three Phase General Purpose AC Motor FX02BK003

Item #120669879

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Inch/Metric	Inch
Shaft Type	NEMA 56
Efficiency	86.5 & 85.5 %
Insulation Class	F
Amps 2	6.6/3.3 A
Resistance	6.4
Electrical Type	Squirrel Cage Inverter Rated
Motor Application	General Purpose
Duty	Continuous
Enclosure	Drip Proof
Shaft Dia.	0.63 in
Power Factor	74.5
No. of Speeds	1
RPM [Max]	1725 RPM
Bearing Type	Ball
Standard	CE, CSA, UL
Power Rating	2 Hp, 1.5 KW
Phase	Three Phase
Frequency	60 & 50 Hz
Voltage	230/460 & 190/380 V
Frame Material	Rolled Steel
Starting Type	Line Or Inverter
Poles	4
Mounting	Bolt-on Base
NEMA Design	A
Ambient Temperature	104 °F
Motor Orientation	Horizontal
Rotation	Reversible
Thermal Protection	No Protection
Amps	6/3 A
KVA Code	N
Drive End Bearing	6203
Service Factor	1.15 & 1.00
Frame	56HC
Weight	46.0 KG
EAN or UPC	691720115060
