056T17D99083

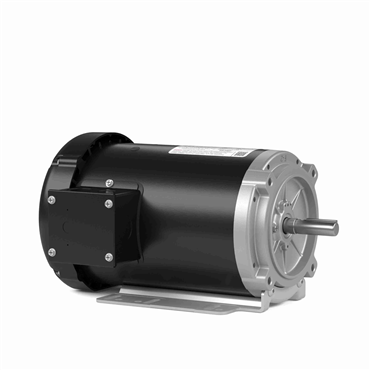

Flex-in-1™ Three Phase General Purpose AC Motor FX01BK003

Item #120602314

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Inch/Metric	Inch
Shaft Type	NEMA 56
Amps 2	2.6/1.3 A
Motor Orientation	Horizontal
RPM [Max]	1725 RPM
Shaft Dia.	0.63 in
Mounting	Bolt-on Base
Power Rating	1 Hp, 0.75 KW
Ambient Temperature	104 °F
Duty	Continuous
Frequency	60 & 50 Hz
NEMA Design	B
Amps	3.2/1.6 A
Power Factor	71
Poles	4
Drive End Bearing	6203
Service Factor	1.15 & 1.00
Frame Material	Rolled Steel
Standard	CE, CSA, UL
Starting Type	Line Or Inverter
Rotation	Reversible
No. of Speeds	1
Bearing Type	Ball
Resistance	12
Electrical Type	Squirrel Cage Inverter Rated
Insulation Class	F
Thermal Protection	No Protection
Efficiency	83.5 & 85.5 %
Motor Application	General Purpose
Voltage	230/460 & 190/380 V
Enclosure	Drip Proof
Frame	56HC
Phase	Three Phase
KVA Code	N
Weight	0.0 KG
EAN or UPC	691720115084
