056T17F15949

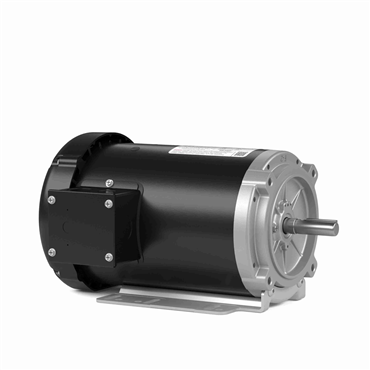

Flex-in-1™ Three Phase General Purpose AC Motor FX13BK004

Item #120585521

56C Frame

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Frame Material	Rolled Steel
Frequency	60 & 50 Hz
Power Rating	0.33 Hp, 0.25 KW
Ambient Temperature	104 °F
Enclosure	Totally Enclosed Fan Cooled
Amps	1.6/0.8 A
Efficiency	68 & 72 %
Electrical Type	Squirrel Cage Inverter Rated
Power Factor	61.9
KVA Code	N
Voltage	230/460 & 190/380 V
NEMA Design	B
RPM [Max]	1725 RPM
Starting Type	Line Or Inverter
Insulation Class	F
Motor Orientation	Horizontal Or Up Or Down
Resistance	44.4
Rotation	Reversible
Poles	4
Motor Application	General Purpose
Drive End Bearing	6203
Shaft Type	NEMA 56
Duty	Continuous
Bearing Type	Ball
Standard	CE, CSA, UL
No. of Speeds	1
Service Factor	1.15 & 1.00
Frame	56C
Thermal Protection	No Protection
Shaft Dia.	0.63 in
Mounting	Bolt-on Base
Amps 2	1.6/0.8 A
Phase	Three Phase
Inch/Metric	Inch
Weight	10.0 KG
EAN or UPC	691720115237
