056T17F15953

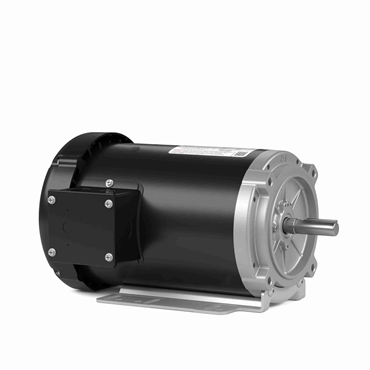

Flex-in-1™ Three Phase General Purpose AC Motor FX02BK004

Item #120110951

56HC Frame

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Efficiency	86.5 & 85.5 %
Mounting	Bolt-on Base
Amps 2	6.8/3.4 A
Voltage	208-230/460 & 190/380 V
Amps	6.2-6/3 A
Motor Orientation	Horizontal Or Up Or Down
Enclosure	Totally Enclosed Fan Cooled
Power Rating	2 Hp, 1.5 KW
Drive End Bearing	6203
Rotation	Reversible
Poles	4
Thermal Protection	No Protection
Electrical Type	Squirrel Cage Inverter Rated
Starting Type	Line Or Inverter
Inch/Metric	Inch
Power Factor	71
Service Factor	1.15 & 1.00
NEMA Design	B
Duty	Continuous
Standard	CE, CSA, UL
Insulation Class	F
Shaft Type	NEMA 56
Ambient Temperature	104 °F
RPM [Max]	1725 RPM
Frequency	60 & 50 Hz
KVA Code	N
Bearing Type	Ball
Phase	Three Phase
Frame Material	Rolled Steel
Motor Application	General Purpose
Frame	56HC
No. of Speeds	1
Shaft Dia.	0.63 in
Weight	48.0 KG
EAN or UPC	691720115145
