056T17F15954

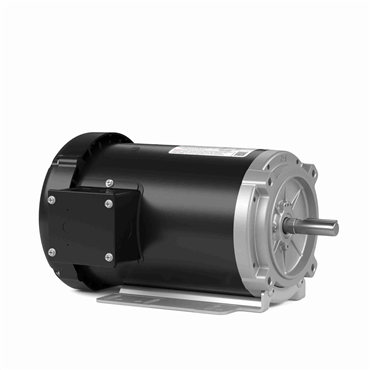

Flex-in-1™ Three Phase General Purpose AC Motor FX32BK004

Item #120084247

TEFC Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Electrical Type	Squirrel Cage Inverter Rated
Shaft Type	NEMA 56
Voltage	208-230/460 & 190/380 V
Starting Type	Line Or Inverter
Ambient Temperature	104 °F
Standard	CE, CSA, UL
Motor Orientation	Horizontal Or Up Or Down
Insulation Class	F
NEMA Design	A
Amps 2	5.4/2.7 A
Frame Material	Rolled Steel
Frequency	60 & 50 Hz
Inch/Metric	Inch
Poles	4
Amps	4.7-4.6/2.3 A
KVA Code	P
Resistance	7.9
RPM [Max]	1725 RPM
Thermal Protection	No Protection
Bearing Type	Ball
Duty	Continuous
No. of Speeds	1
Motor Application	General Purpose
Drive End Bearing	6203
Service Factor	1.15 & 1.00
Phase	Three Phase
Shaft Dia.	0.63 in
Power Rating	1.5 Hp, 1.1 KW
Rotation	Reversible
Power Factor	71
Enclosure	Totally Enclosed Fan Cooled
Efficiency	86.5 & 85.5 %
Mounting	Bolt-on Base
Frame	56HC
Weight	45.0 LB
EAN or UPC	691720115152
