056T34D15650

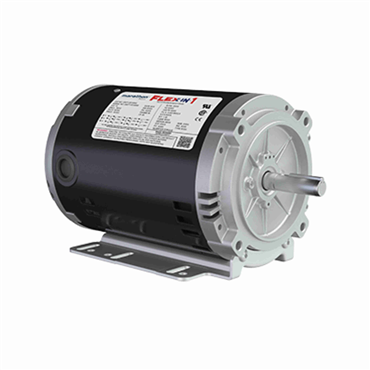

Flex-in-1™ Three Phase General Purpose AC Motor FX02BK001

Item #119820134

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Frame	56HC
Efficiency	85.5 & 82.5 %
NEMA Design	B
Power Rating	2 Hp, 1.5 KW
Duty	Continuous
Standard	CE, CSA, UL
Inch/Metric	Inch
Frame Material	Rolled Steel
Shaft Dia.	0.63 in
Motor Application	General Purpose
Service Factor	1.15 & 1.00
Enclosure	Drip Proof
No. of Speeds	1
Phase	Three Phase
Mounting	Bolt-on Base
Starting Type	Line Or Inverter
Poles	2
Rotation	Reversible
Ambient Temperature Range [Max]	104 °F
KVA Code	K
Thermal Protection	No Protection
Electrical Type	Squirrel Cage Inverter Rated
Speed 2	3450
Amps	5.5-5.4/2.7 A
Bearing Type	Ball
RPM [Max]	3450 RPM
Voltage	208-230/460 & 190/380 V
Frequency	60 & 50 Hz
Voltage Rating	208-230/460 V
Shaft Type	NEMA 56
Amps 2	6.2/3.1 A
Ambient Temperature	104 °F
Motor Orientation	Horizontal
Power Factor	80
Drive End Bearing	6203
Insulation Class	F
Weight	0.0 LB
EAN or UPC	691720115503
