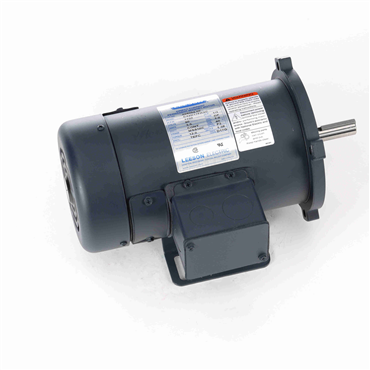

SCR Rated Permanent Magnet DC Motor

Item #101559649
    Shipment Options

Alternate Products

Product details

  • DC PM Motor
  • 1750 RPM
  • 1/3 hp
  • 90 VDC Armature
  • C-Face - With Base


  • High voltage permanent magnet DC motors are typically used with an SCR (thyristor) controller in applications requiring adjustable speed and constant torque throughout the speed range. They are also widely used in applications requiring motor speed adjustment, constant torque throughout speed range and reversing applications.


  • Unique brush holder design provides easy access to brushes and integral constant pressure brush/spring assembly for servicing
  • Large oversized brushes ensure longer brush life
  • Heavy-duty, stamped steel, bolt-on removable base
  • Rugged, die-cast aluminum endshields with cast iron bearing inserts
  • Permanently lubricated, sealed ball bearings


Base Speed 1750 rpm
Inch/Metric Inch
Armature Voltage 90
Field Weakened rpm 1750 rpm
Mounting C-Face - Removable Base
Control Voltage AC Input 115 V
Armature Amps Full Load 3.5 A
Model No. 098004
Frame SS56C
Service Factor 1
Winding Permanent Magnet
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
C Dimension 11.31 in
Motor Application General Purpose
Field Voltage 90 V
Enclosure TEFC
Weight 26.0 LB
EAN or UPC 691720000953
