117119.00

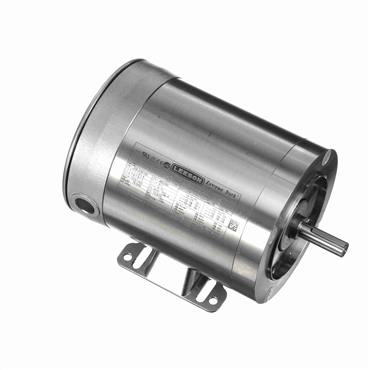

Extreme Duck® Ultra Washguard Stainless Steel AC Motor

Item #101552064

TENV Enclosure

56C Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

Baldor-Reliance CSSSWDM3538

.5HP,1755RPM,3PH,60HZ,56C,3513M,TEN

Item #102179466

each

Compare

Product Details

IP69 certified enclosure protection
Fully encapsulated internal epoxy encapsulation reduces points of entry for contaminants and eliminates need for drain plugs and breathers
Two-piece shaft seal technology provides three points of protection on both ends of the motor
Easily removed Q-Car™ rotor cartridge makes bearing replacement ultra simple
360° rotatable round conduit box for convenient wire placement
Colored, non-wicking, chemical and abrasion-resistant leads for easy connection and installation

Specifications

Frame	56C
Full Load Amps	1.8/.9 A
Voltage Rating	208-230/460
Enclosure Designation	TENV - Totally Enclosed Non-Ventilated
Drive End Bearing	6205
Enclosure	TENV - Totally Enclosed Non-Ventilated
Efficiency Group	Standard Efficient
Voltage	208-230/460
Service Factor	1.15
C Dimension	10.72 in
Overload Protection	None
Mounting	C-Face - With Base
Open End Bearing	6205
Input Phase	Three Phase
Washdown Duty	Yes
Motor Application	Washdown
HP	1/2
Frame Size	56C
Model No.	117119
Hz	60 Hz
RPM	1,800 rpm
Poles	4
Phase	Three Phase
Frame Material	Stainless Steel
Inch/Metric	Inch
Insulation	F4
Rotation	Reversible
Weight	39.0 LB
EAN or UPC	691720366301
