117122.00

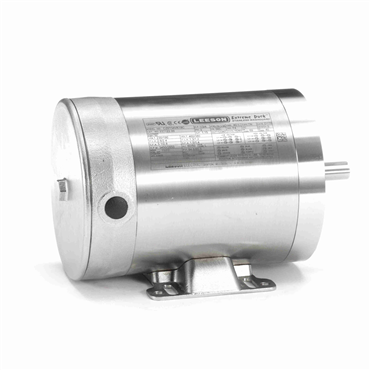

Extreme Duck® Ultra Washguard Stainless Steel AC Motor

Item #101565731

TENV Enclosure

56C Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

Baldor-Reliance CSSSWDM3545

1HP,3450RPM,3PH,60HZ,56C,3516M,TENV

Item #102179465

each

Compare

Product Details

IP69 certified enclosure protection
Fully encapsulated internal epoxy encapsulation reduces points of entry for contaminants and eliminates need for drain plugs and breathers
Two-piece shaft seal technology provides three points of protection on both ends of the motor
Easily removed Q-Car™ rotor cartridge makes bearing replacement ultra simple
360° rotatable round conduit box for convenient wire placement
Colored, non-wicking, chemical and abrasion-resistant leads for easy connection and installation

Specifications

Voltage Rating	230/460
Mounting	C-Face - With Base
Open End Bearing	6205
HP	1
Voltage	208-230/460
C Dimension	10.97 in
Input Phase	Three Phase
Enclosure Designation	TENV - Totally Enclosed Non-Ventilated
Rotation	Reversible
Washdown Duty	Yes
Frame Material	Stainless Steel
Model No.	117122
Enclosure	TENV - Totally Enclosed Non-Ventilated
Inch/Metric	Inch
Phase	Three Phase
Poles	2
Frame Size	56C
Insulation	F4
Motor Application	Washdown
Service Factor	1.15
Efficiency Group	Premium Efficient
Drive End Bearing	6205
Full Load Amps	3.2-3/1.5 A
Hz	60 Hz
Frame	56C
RPM	3,600 rpm
Overload Protection	None
Weight	42.0 LB
EAN or UPC	691720367490
