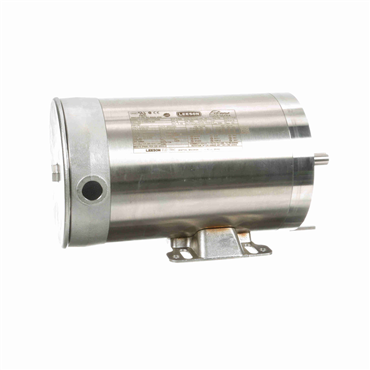

Extreme Duck® Ultra Washguard Stainless Steel AC Motor

Item #113428546

TENV Enclosure

56C Frame

+ Show More

Auto Replenish

each One-time purchase

Product Details

IP69 certified enclosure protection
Fully encapsulated internal epoxy encapsulation reduces points of entry for contaminants and eliminates need for drain plugs and breathers
Two-piece shaft seal technology provides three points of protection on both ends of the motor
Easily removed Q-Car™ rotor cartridge makes bearing replacement ultra simple
360° rotatable round conduit box for convenient wire placement
Colored, non-wicking, chemical and abrasion-resistant leads for easy connection and installation

Specifications

Voltage	230/460
Input Phase	Three Phase
Frame Material	Stainless Steel
Drive End Bearing	BALL
Washdown Duty	Yes
Motor Shaft Length	1 7/8 in
Motor Application	Washdown
Enclosure Designation	TENV - Totally Enclosed Non-Ventilated
Full Load Amps	2.8/1.4
Phase	Three Phase
Frame	56C
Efficiency Group	Premium Efficient
Full Load Efficiency	85.5 %
Model	CZ6T17TK5B
HP	1
Poles	4
Hz	60 Hz
RPM	1,800 rpm
Voltage Rating	230/460
Motor Shaft Size	5/8 in
Bearing Type	Ball Bearing
Open End Bearing	BALL
Insulation	F
Rotation	Reversible
No. of Poles	4
Housing Length	8 in
Enclosure	TENV
Mounting	C-Face - With Base
Service Factor	1.15
Weight	50.0 LB
EAN or UPC	691720991411
